Review

Raleigh Pro Cargo Bike Review

3rd June 2022 by Jody Muelaner Leave a Comment

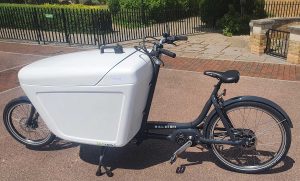

Photo of Raleigh Pro Cargo Bike from side

The Raleigh Pro Cargo Bike is a box bike – a type of cargo bike with a smaller front wheel located well ahead of the handlebars and a linkage steering arrangement. These are very long bikes with a really big cargo area at the front. This style of bike was developed by Long John Bicycles in 1920’s Denmark and has become very popular in Holland where it is known as a Bakfiets. Box bikes have considerably more room for cargo than a longtail cargo bike, although the weight they can carry is about the same. Trikes can carry a lot more – both in terms of volume and weight – but a box bike is much more maneuverable.

The Raleigh Pro Cargo Bike is one of three models in the Raleigh cargo cycle range, this one is aimed at delivery drivers, with a large and secure fibreglass box. The Raleigh Stride 2 is very similar but the covered box is replaced with an open foam box more aimed at holding child seats and shopping. The range also includes a cargo trike. This review focuses on the Raleigh Pro Cargo Bike but most of it would also apply to the Raleigh Stride 2.

Payload

A cargo bike is all about what you can carry. The Raleigh Pro Cargo Bike has a maximum rider weight of 100 kg and a payload of 80 kg. Although this isn’t much more weight than you could carry on a much smaller longtail cargo bike, like a Tern GSD, with a box bike what you get is much more room. A longtail would split the load area up into side panniers and shallower boxes on top of a rack. With a box bike like this you get one really big box that makes it much easier to load with bulky items. This makes the Raleigh Pro Cargo Bike ideal for couriers delivering packages, street vendors and business deliveries. It’s even suited to tradespeople like plumbers and electricians transporting tools and materials.

The large locking cargo box on the Raleigh Pro Cargo Bike

The box has a lockable and weather-proof lid as well, so you can use it much like a car boot. This can be very convenient when stopping to drop off deliveries. Combined with the built-in wheel lock, it means you can easily park outside a building and run inside with a delivery without worrying about the security of the bike or payload. The lid is even equipped with a gas spring which makes it really easy to use.

Ride and Handling of the Raleigh Pro Cargo Bike

If you’re used to riding a normal bike, riding a box bike takes a bit of getting used to, especially at low speeds. Because the front wheel turns around a headset that isn’t directly connected to the handlebars, the wheel isn’t where you instinctively expect it to be. The extra length and weight also mean that the bike can’t react to steering inputs as quickly as a normal bike. This all means that you have to slow down, think ahead, and be aware of where the front wheel is. Manoeuvring at very low speed in tight spaces is definitely not the strong point of any box bike. Don’t expect to be able to flick the front around to avoid an obstacle at the last minute.

Once the bike is moving along at speeds over about 6 mph (10 kph) it feels much like a normal bike. The faster you go, the more familiar it becomes. When going down hill at speed, the extra length out in front actually gives a lot of stability and greatly improves braking performance, with virtually no risk of going over the handlebars.

The mid-drive Yamaha motor with torque sensor performs perfectly. It smoothly and almost instantly delivers power when you start to pedal, making hill starts easy, even when fully laden. There is plenty of power to climb hills, although since all e-bikes are limited to 250 watts, regardless of their payload, a cargo bike will climb slower than a regular e-bike. It took me up Park Street in Bristol at 8 mph.

The mid drive Yamaha motor

I found that power cuts out a little bit over the legal speed limit of 15.5 mph (25 kph), it seemed to cut out for me at more like 18 mph. However, when it did cut it was quite abrupt so it’s worth watching your speed and keeping it below this, especially when climbing hills.

Raleigh uses the NuVinci continuously variable transmission for this bike. This gives stepless shifting over a reasonably wide range, but it’s not the smoothest action with the twist shifter feeling quite stiff.

When fully loaded the combined weight of the bike, rider and cargo could be 240 kg so good brakes are extremely important. Luckily the hydraulic disk brakes are more than capable of bringing the bike to a rapid stop, greatly aided by the long wheelbase.

Tektro hydraulic disk brakes

Storage and Security

Any cargo bike of this style will be too big and heavy for a single person to lift and manoeuvre around, the Raleigh Pro Cargo weighs 60kg. This really isn’t something you can take inside a house to store, so you’ll want to think about keeping it in a garage. You will want to be able to ride it straight in and reverse it out, as turning it around would be difficult.

The size and weight also means you really don’t want to drop a bike like this on the ground. It’s therefore essential to have a good kickstand and the one on the Raleigh Pro Cargo Bike is excellent. You simply push the stand down with one foot and rock the bike onto it. The bike is then very solidly supported. When you want to ride again it’s easy to rock the bike off the stand.

The weight does have some advantages when it comes to security. The bike can be simply parked outside using the kickstand to keep it upright and the built-in wheel lock to prevent anyone from riding away on it.

Raleigh Pro Cargo Bike: Practicality and Build Quality

This is a very well-made and solid feeling bike. It’s clearly been designed for commercial use and I’d expect it to stand up to this type of use well. Practical features like the kickstand, wheel lock, mudguards, and integrated lights are really important for the useability of a bike like this. The fully enclosed chain will also reduce maintenance while ensuring you don’t get oil on your trousers.

Front and rear views of the Raleigh Pro Cargo Bike showing lights, wheel lock and mud guards

Where to buy

The bike I borrowed for this review was the test bike from EcoMove in Bristol – which has an indoor test track and access to the traffic-free harbourside for longer tests. Cycles UK currently has a massive discount on the Raleigh Stride 2, the more family-orientated version of this cargo bike.

Filed Under: Cargo Bikes

What is the smallest folding bike?

30th April 2022 by Jody Muelaner Leave a Comment

Comparing Brompton and BriefBike to see which is the smallest folding bike

When asking the question, ‘What is the smallest folding bike?’ it’s important to realize that there is no one answer. It depends on what you mean by smallest, and it depends on what you count as a bike!

What does ‘smallest’ even mean?

Are you interested in the bike with the smallest overall volume? Or is it the size of the greatest length that’s of more interest? In the real world, both usually matter to some extent.

If you have lots of bikes to store, perhaps in a shipping container, then it’s only really the volume that matters, as long as they stack nicely together, of course. Now imagine you have a bike that folds down into a long thin tube, a bit like a fishing rod. This would have a very small volume but would be extremely inconvenient.

So is a square cube what you want? Well, it depends. This can be ideal for storing in cupboards and luggage racks, but it’s not the easiest to get out of the way in a crowded space. For that, you want something a bit flatter.

Comparing the size of two folding bikes

To see how different shapes can suit different situations, let’s compare the well-established Brompton with the state-of-the-art BriefBike.

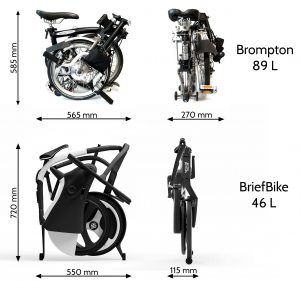

Comparing Brompton and BriefBike to see which is the smallest folding bike

If you look at the side view, the Brompton appears quite a bit smaller. However, the volume of the Brompton is almost twice that of the BriefBike. Although the BriefBike is a bit taller, it ends up with a much smaller volume because it’s much thinner.

A thin flat shape doesn’t just reduce volume; it also tends to be less intrusive and easier to handle. For example, when stored against the wall in a hallway or carried beside your body in a crowded space. In these situations, it doesn’t really matter how tall something is, it’s all about how thin it is. The much thinner BriefBike can be held close to your body, or stored tightly against the wall. In these examples, the Brompton will protrude into the space, meaning people are more likely to bump into it. However, there are some places where a Brompton will fit more easily, such as cupboards, car boots, and some luggage racks. When trying to store something away, it is often the longest dimension that determines whether it will fit.

Which will be more acceptable in your local pub probably depends on whether you will be walking around in a crowd with the bike, or hiding it away under the table.

What counts as a bike?

Probably the smallest folding bike ever produced was the Sinclair A-bike. Although it was a very small, thin, and light folded package, it was virtually unusable as a bike. The 6″ wheels were just too small, the brakes were terrible, the riding position was very uncomfortable, and the transmission was very inefficient. In practice, 16″ wheels are an ideal size for a folding bike, and 12″ is probably the absolute minimum for a practical bike.

The Sinclair A-bike with it's inventor Clive Sinclair, probably the smallest folding bike ever made

Sinclair no longer produces the A-bike, although there are still many copies being produced in Asia.

Filed Under: City Folding Bikes

Burley Travoy trailer: Long-term review

19th August 2020 by Jody Muelaner 1 Comment

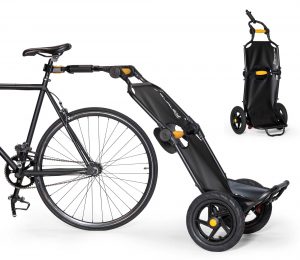

Burley Travoy Trailer

I’ve been using the Burley Travoy trailer for a few months now and, although it’s not without its faults, it’s proved extremely useful. I really like the way I can lock up my bike, disconnect the trailer, and take it into shops and buildings to load it up. When it’s disconnected from the bike its essentially a sack truck that can be used to move large or heavy objects around. When on the bike it has very little effect on handling and easily fits through tight spaces.

The actual trailer is in three sections. The lower section has the wheels, a load shelf, and a small stand so that it can rest upright. The upper section extends the load area and has a handle at the top which makes the trailer very easy to wheel behind you when it’s not attached to your bike. The final section is an extension bar which hooks onto your bike, this can be folded down flat when being wheeled by hand. Between each section there is a twist handle which allows the sections to hinge and fold flat against each other for storage.

Burley Travoy Bags

One of the things that makes the Burley Travoy trailer really useful is the bags which can be attached via attachment buttons on the frame. The trailer comes with a basic bag but various other bags are available, both directly from Travoy and from third-party sellers. These bags work best when

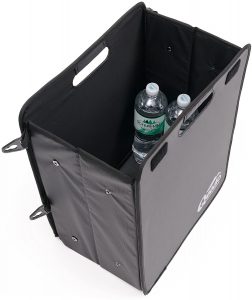

I decided to go for the Qeedo Quick Cases which are stiffened boxes that attach to the upper and lower sections of the frame. There are a couple of things I really like about these. Firstly, because they are fairly solid boxes that are open at the top, it’s really easy to load them. This makes them perfect for wheeling around a shop, loading up with groceries. The second thing I really like about them is that they collapse flat against the trailer so it can be used as a general-purpose sack truck style frame without removing the bags.

Qeedo Quick Case lower bag

There are also some things I don’t like about the Qeedo Quick Cases. They partly cover the middle twist handle, making it slightly awkward to fold the trailer when they are attached. The poppers which hold them flat against the trolley when they’re not being used can be a bit fiddly to line up. Most of the time this really isn’t an issue but the upper case has to be folded out of the way to easily access the lower case. When I’m unloading my shopping onto the conveyor at the supermarket checkout, I first unload the top case, then fold it flat before unloading the lower case. Fiddling around to line up the poppers on the top case can be a bit embarrassing in situations like this.

Although these boxes do have separate rain cover lids that can be purchased separately, I really feel these should be built-in.

Load Capacity and Weight Limit

The Burley Travoy trailer has a weight capacity of 27 kg: 18 kg on the lower section and 9 kg on the upper section. When loaded to around the weight limit, the trailer flexes quite a lot and I really wouldn’t feel confident to exceed these limits. When fitted with the Qeedo Quick Case, as shown in the review, the storage volume is 45 l for the lower box and 20 l for the upper box.

I was a bit disappointed with this capacity. Sack trucks can typically carry weights of between 70 kg and 200 kg. Large rucksacks have a capacity of between 60 and 100 liters. When I attach a trailer to my bike I kind of expect a larger volume than a rucksack and a weight capacity similar to a sack truck. Having said this, the trailer is big enough for a typical trip to the supermarket. I’ve found that when filled with shopping it’s just around the weight limit, and I can strap light bulky items like toilet roll onto the extension handle to increase the volume capacity.

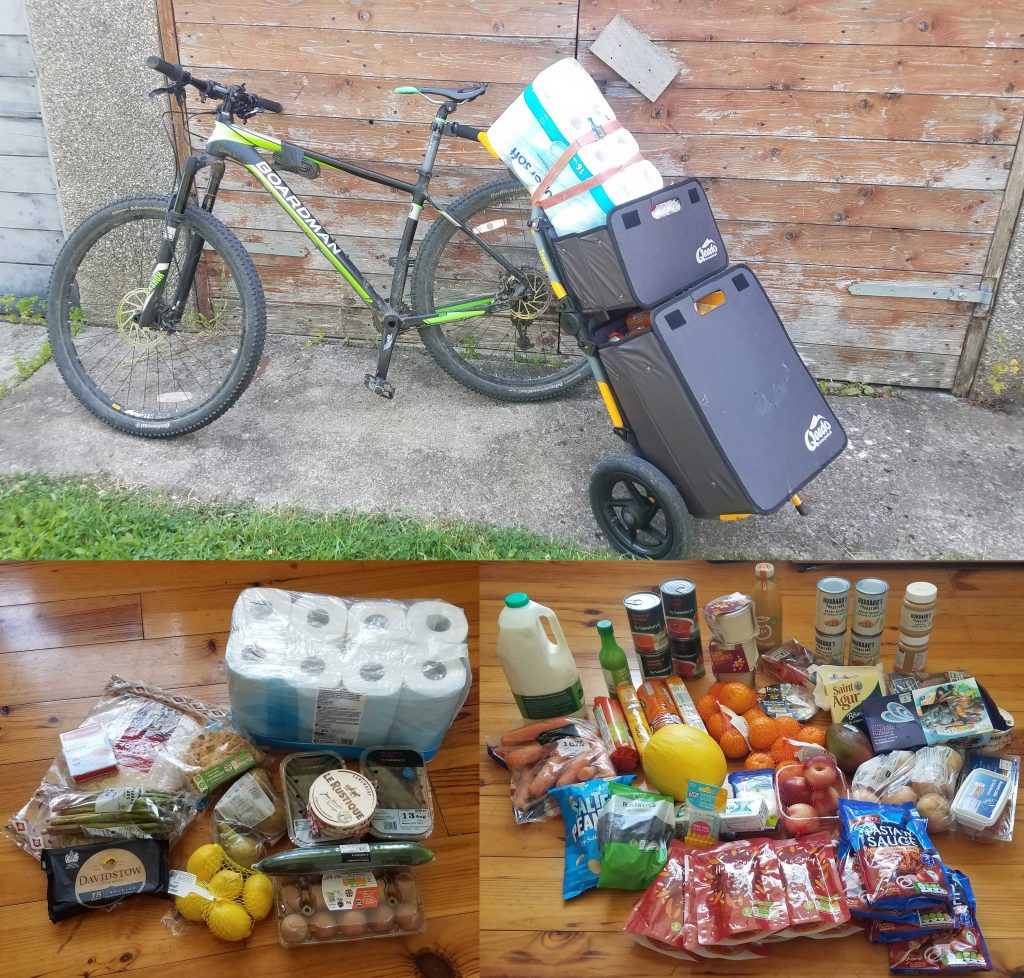

Burley Travoy trailer attached to mountain bike and loaded with shopping, with seperate views showing the large quantity of shopping which fitted inside.
Fully loaded with shopping, showing the 7.7 kg load in the top section and the 24 kg load in the bottom bag (somewhat over the specified capacity)

Folding Burley Travoy for storage

There are two stages to folding the trailer. First, the three sections hinge to form a much more compact package that can easily be carried in one hand and stored in a cupboard. Secondly, the wheels can be removed and the load shelf and stand folded to make it even more compact.

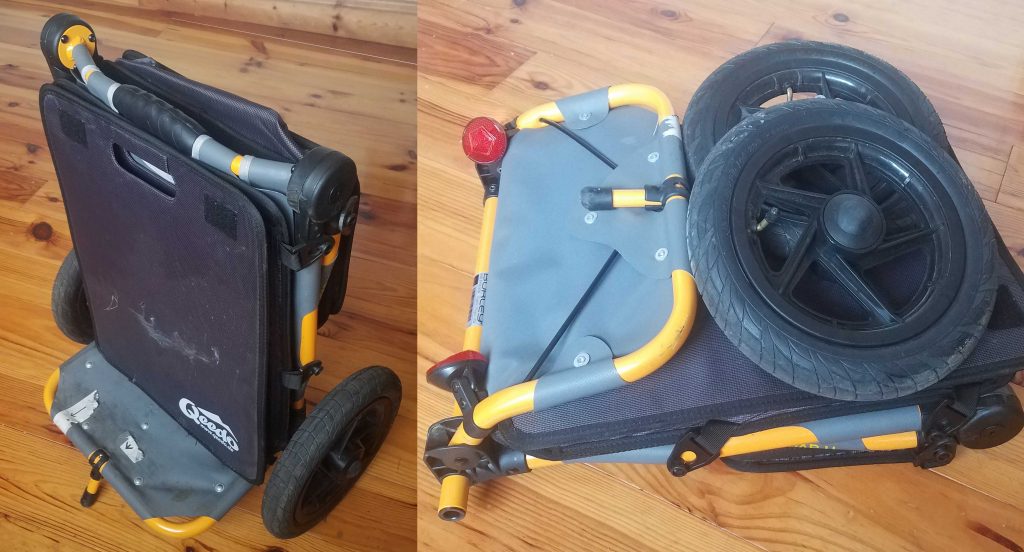

Burley Travoy trailer folded and fully collapsed
Folding the Burley Travoy into a compact package is quick and easy, collapsing it into a completely flat package is more difficult.

Removing the wheels is easy enough although it’s not something I’ve found myself bothering to do. Folding the load shelf and its little stand is a lot more fiddly. There is a sprung ball bearing style release to fold the stand, which I’ve not been able to push it in far enough to release with my finger so I need to use something like some keys to push it. Folding the load shelf is even more difficult. A cable runs under the load shelf and this is pulled to release latches at each side. I found that normally only one side would release and just gave up on using this feature. However, I understand that the latest model has made some changes to these features so they may have improved.

A Better Bicycle is Coming…

The Better Bicycles team of researchers and engineers aim to make cycling more convenient and enjoyable. Our revolutionary design concept now has UK Government funding to bring it to market. Sign-up to give your feedback on design evaluations or even attend prototype testing sessions.

Join the Better Bicycles User Evaluation Team

Manouvering Indoors

One of the major advantages of the Burley Travoy over other trailers is that it is easy to wheel around indoors as a trolley. It is certainly very easy to do this in larger buildings such as shops. In more confined indoor spaces it’s not always so easy, however. I’ve found it quite awkward at times, wheeling it into my kitchen, through a narrow door, and past the swing bin while fully loaded with shopping. There are rubber caps that cover the wheel release buttons and I always seem to knock these off as I’m pulling the trolley through the door. It might be easier to just leave the caps off.

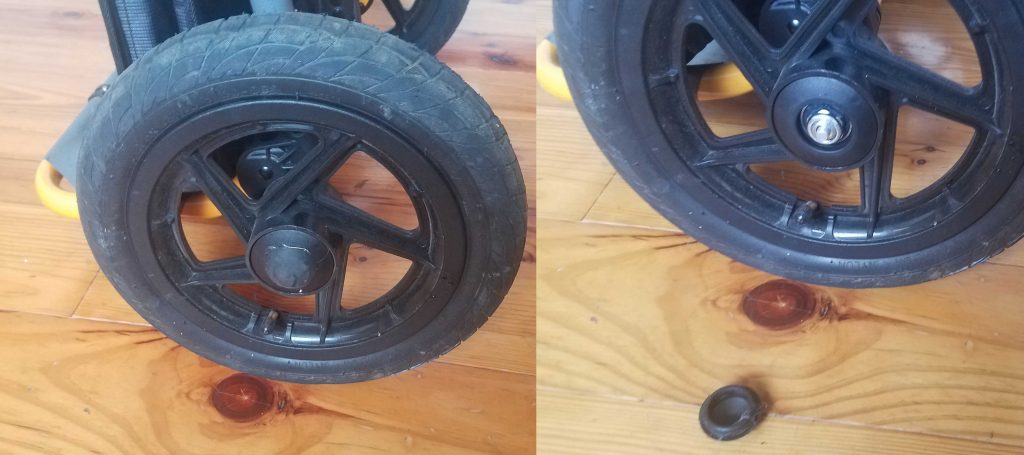

I found the rubber caps over the wheel release buttons kept getting knocked off when wheeling through narrow doorways.

Bringing the loaded trailer up narrow stairs into a flat is even more difficult. It’s really difficult to carry the trailer when it’s fully laden as it’s a large awkward shape weighing over 30 kg. It’s also not very easy to detach the bags and carry them separately. This means the only option is to walk backwards up the stairs bumping the trolley up each step like a sack truck. This is really quite difficult on narrow steps with turns and the flex in the trolley becomes even more noticeable. Although this might not be something many users ever have to do, it would be nice if the bags were easier to detach in situations like this.

Conclusions

After years of using a large rucksack to go shopping on my bike, I now find it hard to imagine not having my Burley Travoy trailer to carry the load for me. Being able to carry larger bulky items such as a child’s bike makes it truly indispensable for me. Although there is room for it to be improved, I don’t think there’s a better solution for everyday trips around town carrying more than can easily fit into a bag.

Disclosure: This review contains an affiliate link

If you buy something using a retail link, we earn a small commission, which helps fund our mission to improve bicycles. This will not affect the price you pay. We are independent and do not accept money for our reviews. Thank you for your support.

Filed Under: Luggage

Brompton Folding Bike Review

12th November 2019 by Jody Muelaner 1 Comment

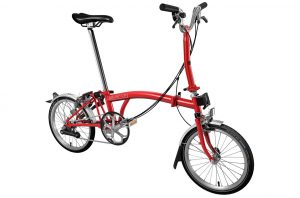

Red Brompton M6L Folding Bike

For many, the Brompton is the definitive folding bike. The design has changed little since it was released in 1979, this means that it’s much easier to obtain spare parts than for some other folding bikes. Since folding bikes use many special parts, this is an important consideration. Despite its age, the Brompton remains one of the best folding bikes. This in-depth review looks at the strengths and weaknesses of the Brompton.

The Good

  • Very compact and easy to fold
  • Handling much better than most folding bikes. If feels like a real bike.
  • Easy to maintain over long periods of time.
  • Lots of well-integrated accessories such as bags and child seats

The Bad

  • Strange gear options don’t allow wide ranges or easy increments.
  • Brakes not up to the premium price.
  • Could be easier to roll when folded.

Folding and Unfolding the Brompton

The Brompton really is very easy to fold and unfold in just a few seconds. The initial fold uses a hinge in the frame, which folds the front of the bike around from the side, while the rear suspension arm also swings the rear wheel down and underneath the frame.

Plastic hook on front fork
A plastic hook on the front fork does a great job of catching the rear swingarm and locking everything into a solid folded package.

It’s relatively easy to carry out both of these movements together as a single action. This is slowed down only slightly by the need to unscrew a clamp on the main frame hinge. Everything just works. While many other folding bikes feel awkward and can get caught during folding, the Brompton just seems to slot into place every time. It’s not quite as fast as the single action fold of a Strida, and you do need to bend down to fold it, but it’s a very slick fold non-the-less. The final operation in the quick fold is to loosen the seat post’s quick release and slide the seat post down. This locks the rear swingarm, which in turn holds the front forks. The Brompton becomes a solid and secure folded package. Small roller case style wheels allow it to roll along the ground.

Red Brompton partially folded with the handlebars still extended
The Brompton is quickly folded into a package that can be wheeled along using the handlebars to pull it

At this stage, the handlebars are still extended but they make a useful handle to pull the Brompton along. When walking long distances it’s easiest to pull it along behind you. To navigate tight spaces it is easier to swing the bike in front of you and push it. When pushed it is easier to make tight turns. As with the fold, it’s definitely not as easy to wheel along the ground when folded as a Strida but it’s better than most other folding bikes.

Fully folding the bike involves folding the left pedal and dropping the handlebars next to the bike. A small clamp is very easily unscrewed to release a hinge at the bottom of the long stem and the handlebars then fall naturally in place. A sprung clip at the top of the fork then engages with a plastic knob on the side of the stem, this holds the handlebar in its folded position.

Close up views of the clip on the fork and the knob on the stem which hold the handlebars securely in their folded position
A Clip on the fork and a knob on the stem engage to hold the handlebars securely in their folded position

A Better Bicycle is Coming…

The Better Bicycles team of researchers and engineers aim to make cycling more convenient and enjoyable. Our revolutionary design concept now has UK Government funding to bring it to market. Sign-up to give your feedback on design evaluations or even attend prototype testing sessions.

Join the Better Bicycles User Evaluation Team

Brompton ride and handling

The Brompton really excels as a bicycle. Once unfolded and riding along, it feels like a real bike. Although it can feel slightly twitchy with lower bar positions I enjoy the more lively ride. When pedaling hard or cornering at speed the frame feels rigid, a real contrast to the very noticeable flex on most folding bikes. This gives me confidence to ride at higher speeds than I would on other folders, although it is let down slightly by the lack of disc brakes.

Brompton currently offers 3 handlebar options, giving the choice of three bar heights: 1072 mm for the H Type, 1015 mm for the M Type and 935 mm for the flat S Type handlebar. How upright these feels will depend on how tall you are. I’m 6′ (182 cm) and find the S Type gives quite a sporty position, similar to a cross country bike, while the M Type is more like a traditional city bike. There is also a P Type, which is bent around providing two different ride heights, although Brompton is not currently offering this on new bikes.

A man riding a Brompton folding bike
The Brompton with the higher M Type handlebar for a more upright riding position

I’ve been amazed at how well the Brompton can cope with riding quickly through a city. When I’ve occasionally lost grip on a corner I’ve found it drifts in a controlled way with the rigid frame and sensible geometry allowing me to keep control. Similarly, it’s reasonably easy to bunny hop up curbs. For pure riding performance, it isn’t as good as a Birdy or Airnamal, but those bikes don’t fold as well as a Brompton.

Specifications of the Brompton

Bromptons have four gear options: Single speed, 2-speed derailleur, 3-speed hub gears, or a 6-speed that combines the 2-speed derailleur and 3-speed hub.

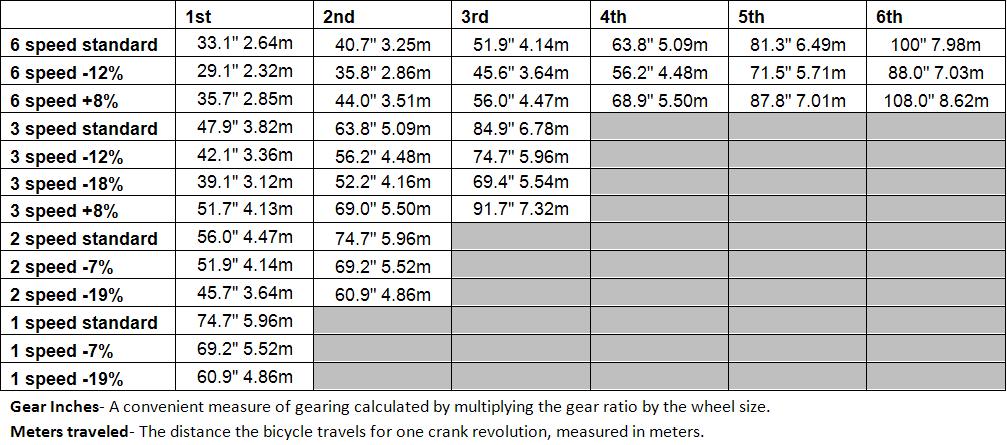

Brompton Gear Ratios
A wide range of gear ratios are available for the Brompton although many use the strange 2-speed derailleur that is not very convenient

The 6-speed option is set up to reduce the size of the steps between the hub gears, more than to increase the overall range. This results in a reasonable overall range of 302% with relatively even steps of 23% to 28% between them. However, to change gear in these smaller steps means shifting up on the hub as you shift down on the derailleur for every single gear change, which is very awkward. This seems a strange way of doing things when both Shimano and Sturmey Archer produce very good 8-speed hub gears that would give much more convenient gearing.

Older Bromptons used quite low-quality rim brakes that were definitely an issue. These have now been replaced with dual-pivot rim brakes which are much more effective, although still nowhere near as reliable for stopping in the wet as disc brakes. Many bikes in this price range now use disc brakes and it would be nice to see Brompton offer this as an option.

Good quality mudguards are fitted to keep you clean when it’s wet.

Luggage and child carrying

There are lots of luggage options available for the Brompton, including a child seat that still allows the bike to fold. The most popular type of luggage on the Brompton is a front bag attached via the special Front Carrier Block. This is a plastic bracket mounted on the head tube that clips into specially made luggage for the Brompton. This means that the bag doesn’t turn with the handlebars, so it doesn’t affect steering. The bags can be quickly detached when the bike needs to be folded or you want to take the bag with you away from the bike.

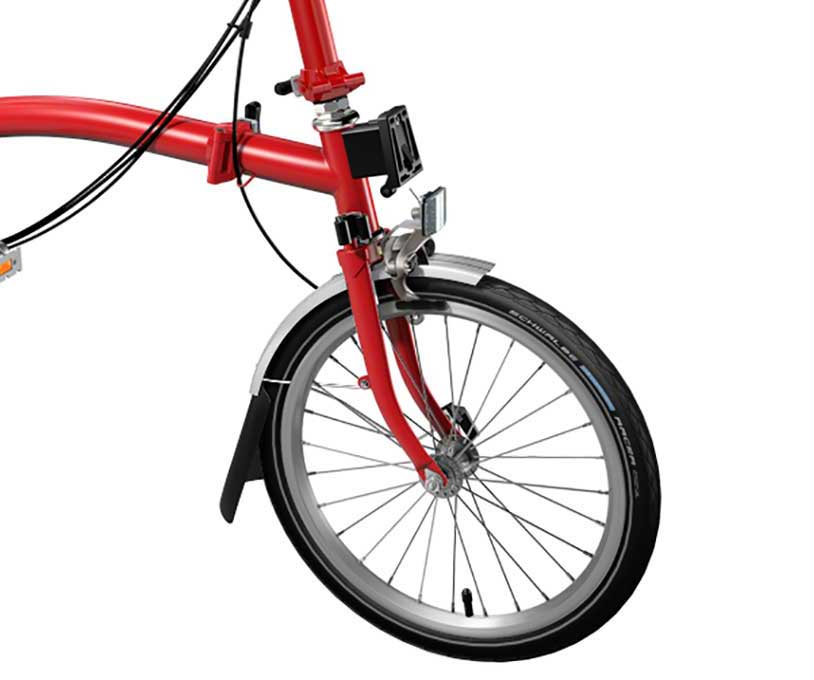

Brompton Front Carrier Block for Luggage Bag
Brompton Front Carrier Block which can be used to attach a wide range of bags and baskets to the front of the bike

The IT Chair is an unofficial child seat available for the Brompton. It allows a small child to sit in front of you so that they also hold onto the handlebars. I think this is the best way to carry a child on a bike, it puts their head close to yours so you can talk and look at things together. They also feel safer in this position, with your arms around them. What’s great about the IT Chair is that it has very little impact on the folding of the Brompton. When it’s time to release the seat post quick release and slide the seat post into the frame, you simply lift the saddle up slightly, to unhook the IT Seat where it rests on the frame and rotate it slightly to the side. The seat post is then dropped into the frame as it would normally be when folding a Brompton, bringing the IT Seat into a folded position along the side of the Brompton.

The Brompton’s child seat

Conclusion

Overall, the Brompton is definitely one of the best folding bikes. It largely deserves it’s reputation although there are better bikes

Filed Under: City Folding Bikes

Dahon Curl Folding Bike Review

17th July 2019 by Jody Muelaner 1 Comment

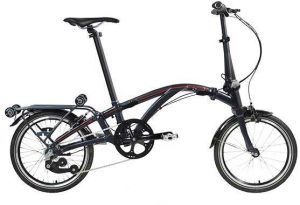

Side view of the Dahon Curl folding bike

This is a detailed review of the Dahon Curl folding bike. The Curl is Dahon’s version of a Brompton, made once Brompton’s original patent expired. It has the same folding mechanism with the rear wheel swinging in under the frame. The Dahon Curl has some nice features but it lacks the refined ride of a Brompton. Where the Dahon has the edge is moving it around in a half fold, something I’ve found really key to the practical use of a folding bike.

The Good

  • Very adjustable riding position.
  • Easy and secure fold
  • Easy to roll along when partially folded
  • Very compact fold
  • Sensible gearing options of 3 or 8-speed Nexus hub gears

The Bad

  • Feels twitchy and unstable when handlebars are lower than the saddle.
  • Brakes could be more powerful

Folding and unfolding the Dahon Curl

The fold starts by pushing a button to release the rear swingarm and releasing a clamp to fold the frame close to the headset. With a bit of practice, I found it was possible to flip the front around and the back wheel under at the same time. Releasing the swingarm is very easy, the clamp on the front of the frame has a safety catch meaning it’s not quite such a smooth operation but easy enough. A small plastic fork, mounted close to the rear chain tensioner, catches the front forks as they move into their folded position, holding the folded package together. The most awkward part of this whole operation is ensuring that the pedal is in the correct position so that the front wheel doesn’t hit it as it folds in.

The Dahon Curl with frame folded and seat and handlebars still extended.
The Dadon Curl can be rapidly folded to this initial position, it is then possible to roll it along using the small wheels on the luggage rack and holding the saddle as a handle.

What’s really nice about the Dahon Curl is that this quick initial fold is all you need to initially create a more compact and easily maneuverable package. In the folded position the Curl rests on small wheels integrated into the luggage rack. You can wheel it along very comfortably by holding the saddle. Wheeling a bike on small castor wheel will never be as smooth as using the actual bike wheel, so this doesn’t compare to the ease of moving a folded Strida, but I found it easier than any other folding bike I’ve tried, including the Brompton. From this position, it’s very easy to fold the handlebars down to make the package more compact. The handlebars stay in this position by gravity.

The Dahon Curl with frame folded and handlebars also folded down, but seatpost still extended.
With the handlebars also folded, the Dahon Curl becomes considerably more compact but it is still very easy and maneuverable to wheel it along using the saddle as a handle.

It’s worth noting that with the seatpost extended, the swingarm holding the rear wheel isn’t locked into place. This means that if you pick the bike up by the frame it will start to unfold. If you’re pushing the bike along and you need to pick it up, perhaps to climb some stairs, you won’t want it starting to unfold. Luckily there is a very simple solution. As you grasp around the top tube, you simply grip the rim of the wheel as you pick the bike up.

A fully folded Dahon Curl
The fully folded Dahon Curl is the same size as a Brompton

The final stage of the fold is to drop the seatpost. This locks everything into a folded package that is very compact for easy storage. The dimensions of the Dahon Curl when folded are 580 mm x 545 mm x 280 mm. Although the folded bike is slightly longer than a Brompton, it is also a little lower. The volume is the same for both bikes, 89 liters.

A Better Bicycle is Coming…

The Better Bicycles team of researchers and engineers aim to make cycling more convenient and enjoyable. Our revolutionary design concept now has UK Government funding to bring it to market. Sign-up to give your feedback on design evaluations or even attend prototype testing sessions.

Join the Better Bicycles User Evaluation Team

Ride and handling of the Dahon Curl

The Dahon Curl has a long telescopic stem that allows you to adjust the handlebar height in the same way as you adjust the sadle height with a seatpost. This gives a huge range of adjustment which I found really excellent. Being able to adjust the bike from the low aero position to an upright position is unusual and extremely useful. Not just to suit different riding styles but also for variety on a long ride.

I was a little disappointed with the handling of the Dahon Curl, it definitely doesn’t feel as refined as the Brompton. I found the steering to be twitchy, making me feel that the bike was a bit unstable. It feels like there is too much weight over the front wheel and I didn’t feel very comfortable riding out of the saddle. Despite this, I was able to lift the front wheel and bunny hop the Dahon Curl quite easily. This can be tricky on some very compact folding bikes such as the Strida.

Specification

There are two gearing options, the Curl i3 comes with a 3-speed Shimano Nexus hub gear while the Curl i8 is fitted with the 8-speed Nexus hub. I found the range of gears on the 3-speed to be quite limited, especially lacking in low gears for steep climbs. If you’re riding anywhere that isn’t flat I’d definitely recommend going for the 8-speed Curl i8.

The brakes are perfectly acceptable dual-pivot calipers. My current bikes both have disc brakes so the calipers felt very underpowered to me. It’s a shame that more folding bikes don’t have disc brakes, especially with them now becoming very affordable and carrying very little weight penalty.

Luggage and Child Carrying on the Dahon Curl

The Dahon Curl comes fitted with an alloy luggage rack which also serves as a stand when it is folded. This means that if the rack is used to carry any luggage it will interfere with the folding of the bike, limiting the usefulness of the rack.

There is no integrated child seat and it would be somewhat problematic to fit one. There is no room for a top-tube mounted seat. It would probably be possible to fit a seat to the luggage rack but this would need to be removed to fold the bike.

Conclusion

The Dahon Curl is a high-quality folding bike that matches the compact fold and convenience of the Brompton. I actually found it easier than a Brompton to wheel along when partially folded. This is something that I’ve found to be really key to the convenience of using a folding bike. The ride doesn’t feel as refined as a Brompton but it has the advantage of being able to adjust the handlebar height to achieve either a sporty or an upright riding position. The option of an 8-speed Nexus hub gear is also arguably preferable to Brompton’s unconventional gear systems.

Disclosure: This review contains an affiliate link

If you buy something using a retail link, we earn a small commission, which helps fund our mission to improve bicycles. This will not affect the price you pay. We are independent and do not accept money for our reviews. Thank you for your support.

Filed Under: City Folding Bikes

Carrera Intercity folding bike review

31st January 2018 by Jody Muelaner 70 Comments

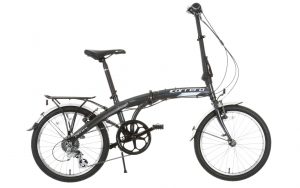

In this article, I take a close look at the Carrera Intercity. This is an affordable folder that can compete with some considerably more expensive bikes. It rides really well with 20” wheels, a responsive alloy frame and decent components for the money. The 8-speed Shimano gears and V-brakes are effective while the adjustable stem allows a wide range of riding positions to be accommodated. This is the cheapest folding bike I’ve ridden that felt like a proper bike, I’d be happy taking it on a long ride. Although this is still no Brompton in terms of folded size it does weight about the same at 12kg (26 lbs) and could be carried onto an underground train or into a shop at a push. Currently selling for £350 from Halfords.co.uk this really is very affordable for a decent folding bike. This bike is in some ways similar to the cheaper Carrera Transit but if you have the extra money I’d definitely go for the Intercity.

The good:

  • Reasonably priced folding bike
  • Fully equipped with luggage rack and full mudguards
  • Decent gears and brakes
  • Lively feeling frame with predictable handling
  • 20” wheels
  • Reasonable weight 12kg (26 lbs)

The bad:

  • Quite large when folded: 83.5cm x 36cm x 66cm (33” x 14” x 26”)

Folding and unfolding the Carrera Intercity

The Carrera Intercity is a typical half way fold, very similar to the Transit. The folding process starts by lowering the saddle and then folding the frame in half. This causes the front wheel to swing around and align next to the rear wheel. Magnets catch at this point holding the wheels together and preventing the bike from swinging open. A brief tug is all that is required to break the magnets and open it back out. Finally, the handlebars can be folded over the top of the bike. It seems as though it should be possible to fold the handlebars first so that they are inside the folded package, between the wheels. However, I found that if I did this I couldn’t get the magnets to meet, just as with the Carrera Transit.

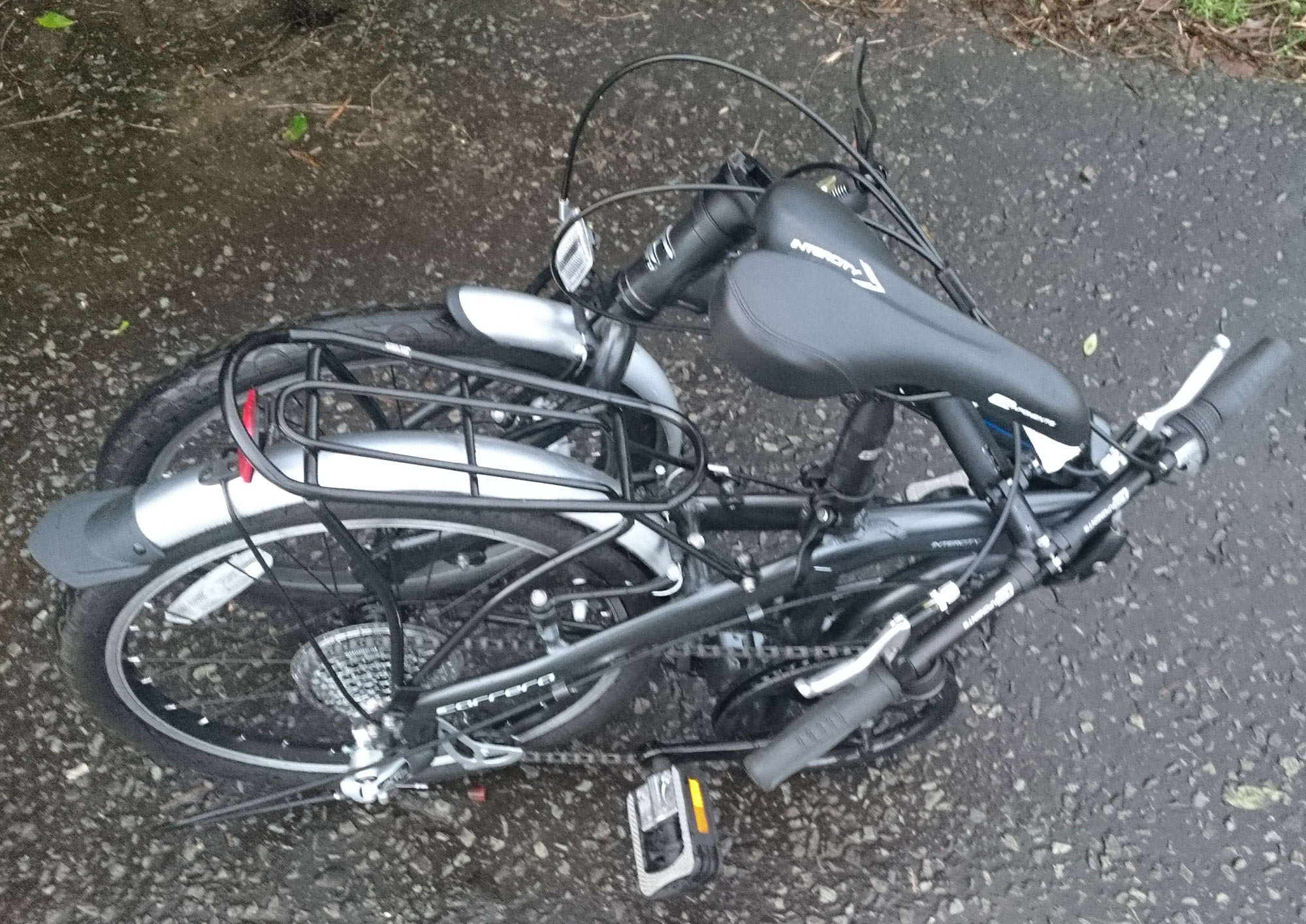

Side view of the folded Carrera Intercity
The folded Carrera Intercity

The folded package is smaller than many other more affordable folders although still over twice the volume of a Brompton at 83.5cm x 36cm x 66cm (33” x 14” x 26”). In terms of weight, the Carrera Intercity’s 12kg (26 lbs) is much more competitive, around the same as an equivalent spec Brompton, which would cost you almost three times as much.

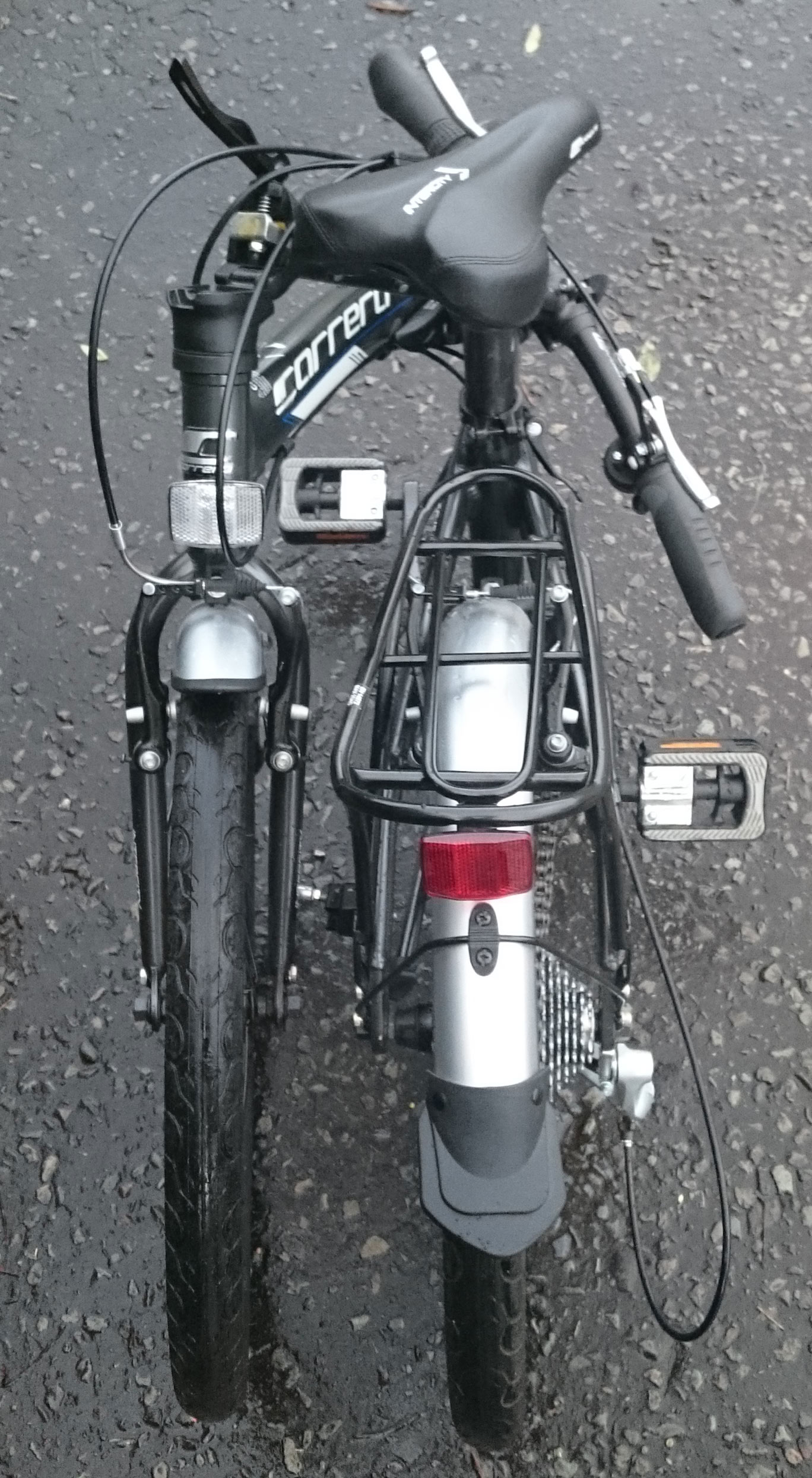

Rear view of the folded Carrera Intercity
Rear view of the folded Carrera Intercity

Ride and handling of the Carrera Intercity

I was really surprised by how well this bike rides. Although in many ways it appears to be similar to the Transit, the Intercity really feels like a far superior bike. The adjustable stem enables a wide range of riding positions. This is a very significant improvement and I found that although the frame was still a little short for me I was able to achieve a position that felt pretty good. I felt confident making tight turns and braking hard on the Intercity. The forks and stem felt quite rigid and I didn’t experience any of the judder when using the front brake that was an issue with the Transit.

I’m about 181 cm (6’), I didn’t need to overextend the seat post to get a good leg extension. The Carrera Intercity’s adjustable stem and very long seat post should accommodate much smaller riders very well.

A Better Bicycle is Coming…

The Better Bicycles team of researchers and engineers aim to make cycling more convenient and enjoyable. Our revolutionary design concept now has UK Government funding to bring it to market. Sign-up to give your feedback on design evaluations or even attend prototype testing sessions.

Join the Better Bicycles User Evaluation Team

Specifications

The Carrera Intercity’s 8-speed Shimano gearing utilizes an Altus derailleur and Revo twist grip shifter. These are lower end components but they function very well and are easily maintained. Although I wouldn’t expect this bike to be used for any serious mountain passes the range of gearing should be sufficient for hilly areas. The 20” wheel size provides a good compromise between being small enough to give a compact fold while being large enough to deal with obstacles and roll smoothly over rougher road surfaces. This is also a common size with plenty of tires choices available. The fitted V-brakes do the job of stopping, even in wet weather, although they might not be the most refined design. V-brakes are also easy to work on and pads are available everywhere.

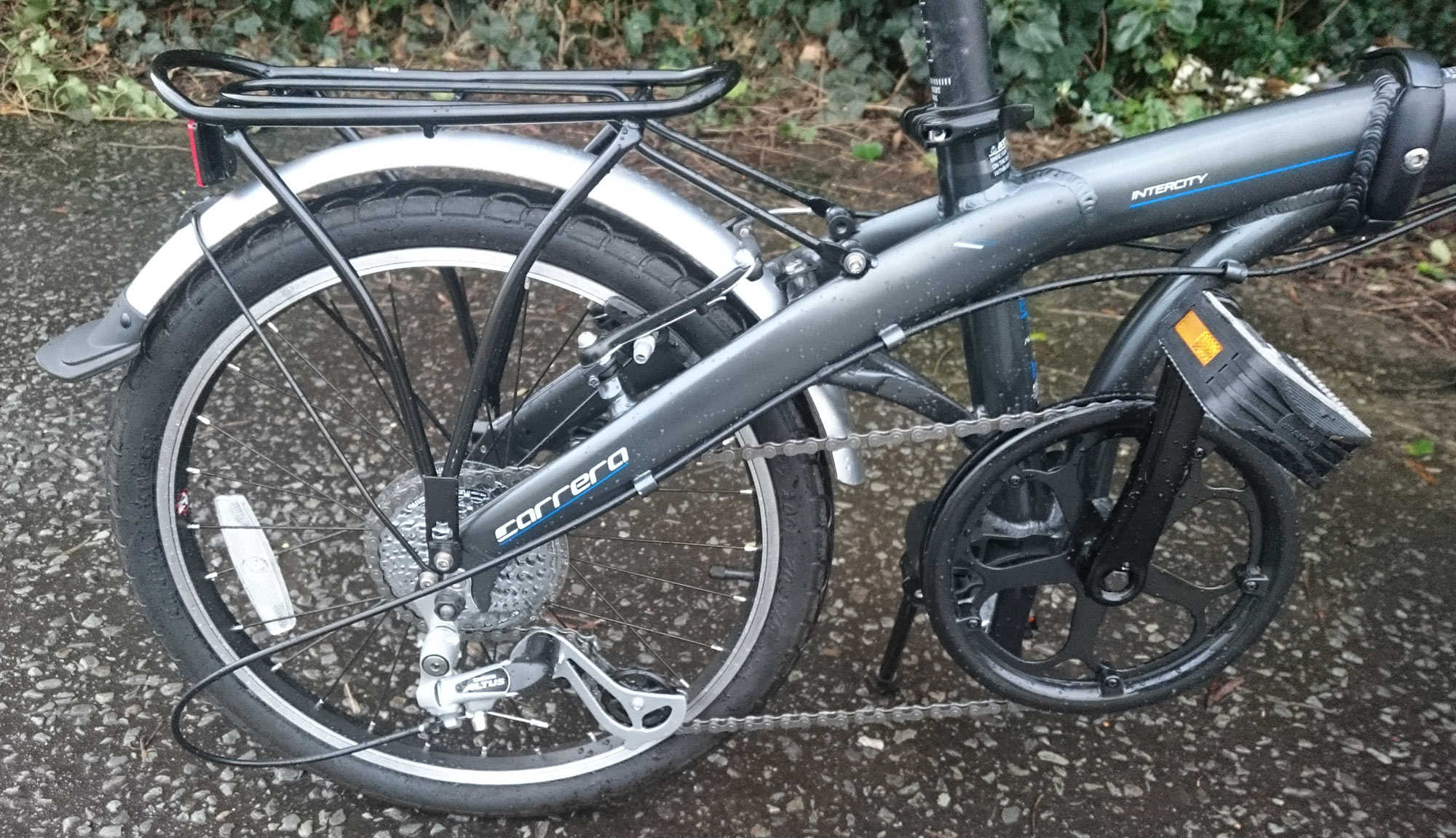

View of the rear wheel and transmission of the Carrera Intercity
Rear of the Carrera Intercity showing the 8-speed Shimano gears, mudguard and luggage rack

I was pleased to see a chain wheel guard and mudguards, all practical features to keep your clothes clean. The front mudguard could definitely benefit from extending further around the back of the front wheel as my shoes got soaked when riding through puddles. I would also have preferred to see a full chain guard although I appreciate this is difficult with derailleur gearing. It also would have been nice to see quick release wheels, without these you will need to carry a spanner to repair flat tires and the process will be somewhat more irritating.

Luggage and Child Carrying on the Carrera Intercity

The Carrera Intercity is supplied fitted with an alloy luggage rack. This is a useful feature. There, of course, no integrated child seat but one could probably be fitted to the luggage rack.

Conclusion

The Carrera Intercity is quite affordable and yet in some ways can compete with considerably more expensive bikes. For example, compared to a Brompton, the Carrera Intercity is almost one-third of the cost while being about the same weight, having larger wheels and in some respects having superior gearing. In terms of the riding experience, it is very similar. The adjustable stem makes a big difference by enabling an efficient and comfortable riding position. If you want a really good quality folding bike for a decent price then this should definitely be on your list.

Filed Under: City Folding Bikes

Carrera Transit folding bike review

30th January 2018 by Jody Muelaner 6 Comments

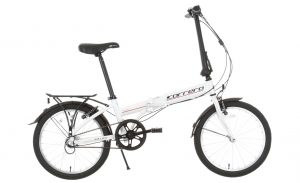

Side view of the Carrera Transit folding bike

In this in-depth review of the Carrera Transit folding bike I will cover my experience riding the bike as well as it’s folding and build quality. This bike is very affordable, currently selling for £256 from halfords.co.uk. With its 3-speed Nexus hub, V-brakes and an alloy frame it has a decent spec for a bike of this type. As with other similar bikes the Carrera Transit doesn’t fold into a very small package that most people would be comfortable carrying around. A fixed stem giving an upright riding position combined with quite a short frame makes this a bike for the more relaxed cyclist. If you can afford it the similar Carerra Intercity is a better bike.

The good:

  • Very affordable folding bike
  • Fully equipped with luggage rack and mud guards
  • Adequate gears and brakes
  • Lively feeling frame
  • 20” wheels

The bad:

  • Fairly heavy: 14kg (31 lbs)
  • Quite bulky when folded: 74cm x 76cm x 40cm (29” x 30” x 16”)
  • Flex in fork and stem

Folding and unfolding the Carrera Transit

The Carrera Transit is a fairly typical halfway fold. This involves folding the frame in half to bring the wheels roughly next to each other, collapsing the long stem to bring the handlebars next to the folded package and lowering the long seat post. There are magnets mounted close to the wheel axles which hold the bike together in its folded position. As with other bikes of this type the folded package is still quite large at 74cm x 76cm x 40cm (29” x 30” x 16”) which is almost three times the volume of a Brompton. The weight is also fairly high, at 14kg (31 lbs).

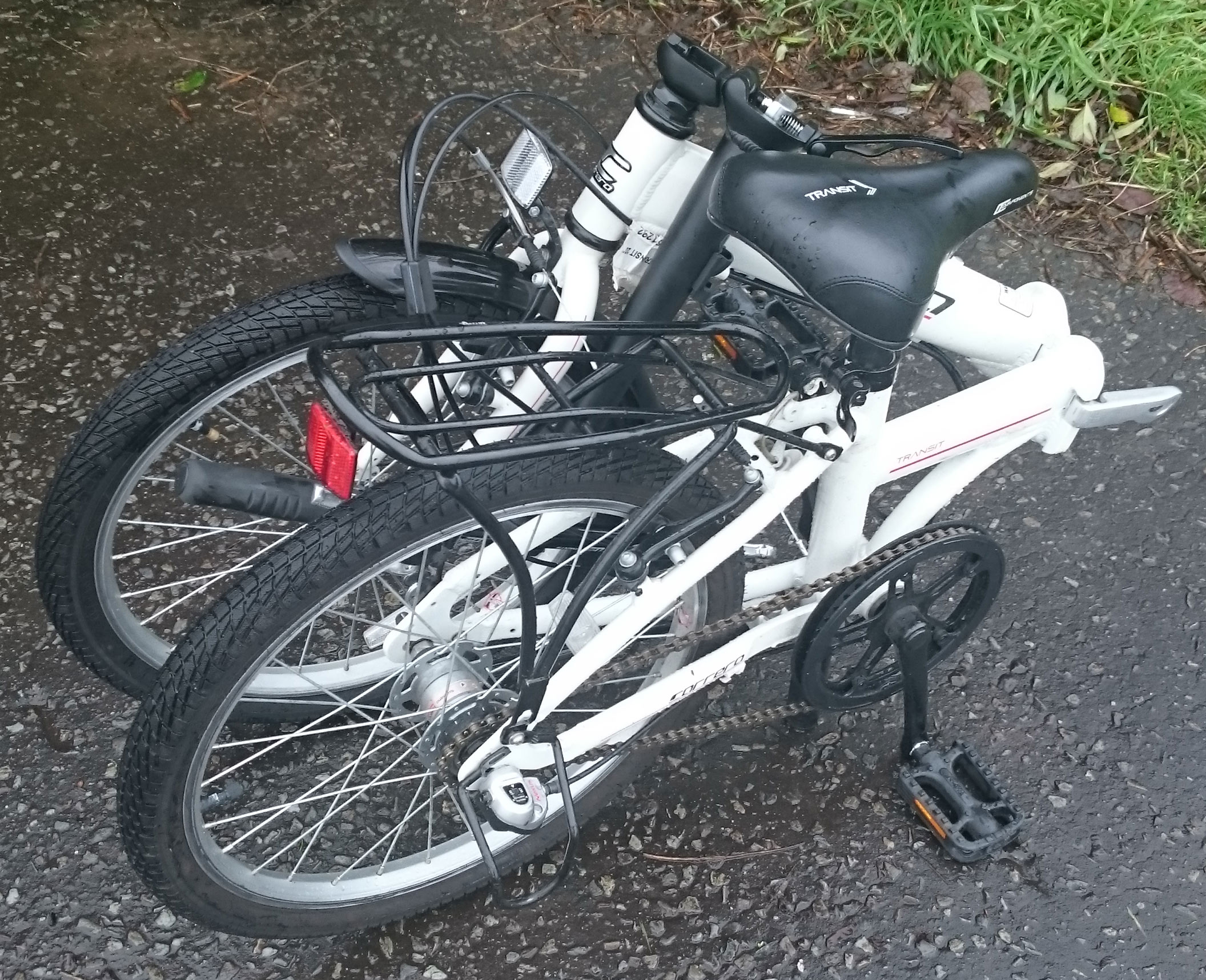

Folded view of the Carrera Transit folding bike
The Carrera Transit with handlebars folded inside the package, it is still quite large and bulky

Initially, I had a lot of difficulties understanding how to fold this bike. It is possible to collapse the handlebar first, bringing it in-between the wheels. This should produce a more compact fold but I couldn’t quite get the magnets, which hold the wheels together, to stay connected. It seems that the correct way to fold this bike is to fold it in half first and then bring the handlebars down over the top. This makes it slightly less compact but it does mean that it stays in the folded shape.

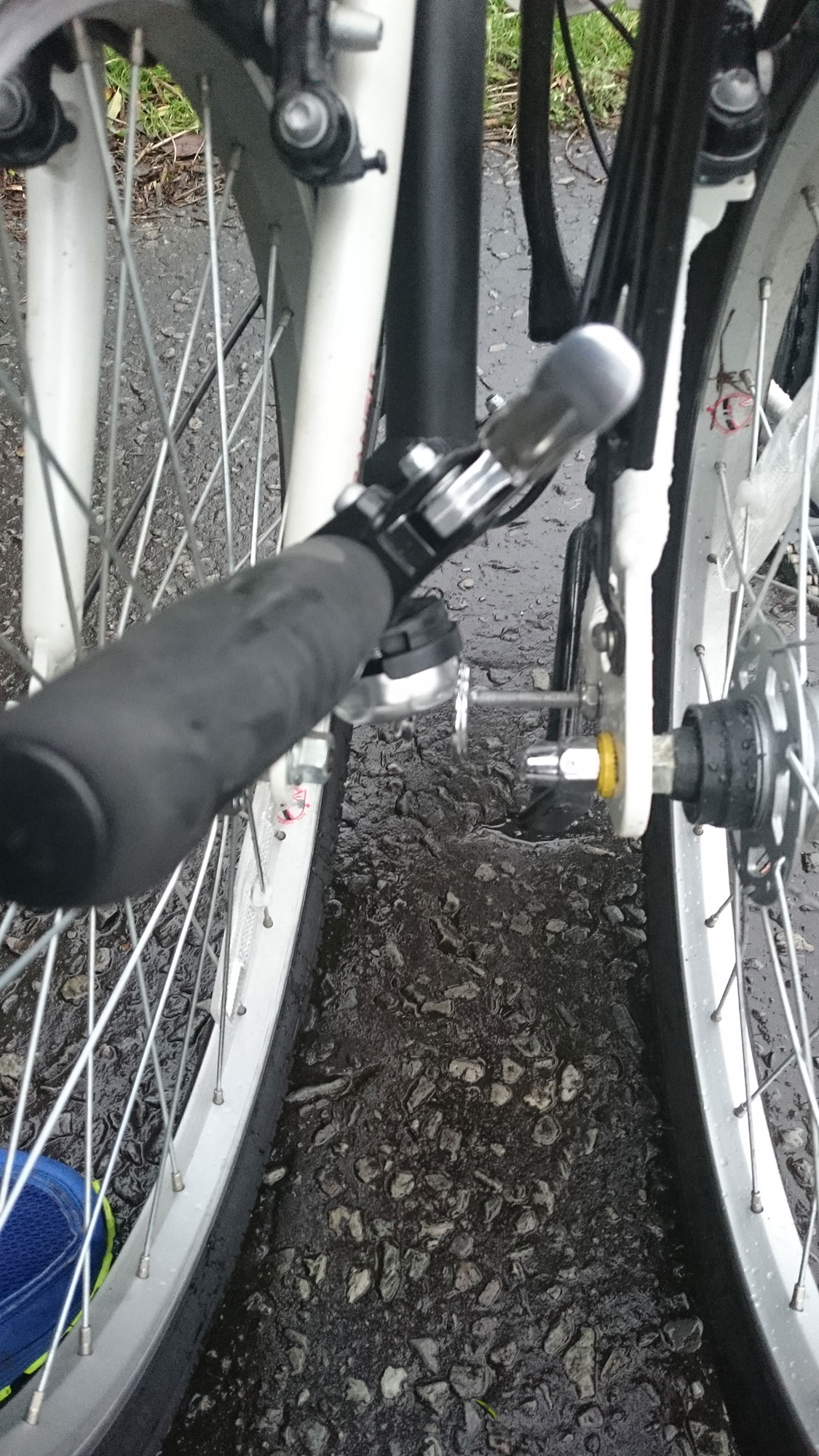

Close-up view of magnets which hold the Carrera Transit folding bike together in folded position
Magnets meet to hold the Carrera Transit in its folded position, but if the handlebars are folded inside there isn’t quite enough roof to close the magnets

Once I got used to the folding sequence I found the Carrera Transit quite easy to fold. The main clamp which holds the frame together has a safety release. I found I could lift the safety release and open the lever in a single movement.

When folded the Carrera Transit remains a large awkward package which is also fairly heavy. It is not really possible to wheel it along when it is folded. This is not a bike I would want to carry. As with other bikes of this type it is suitable for storing away or transporting on a train. It would not, however, work well if you need to be able to walk around with the bike folded. You might need to do this to travel on a rapid transit system or if you want to take you bike into shops or offices.

A Better Bicycle is Coming…

The Better Bicycles team of researchers and engineers aim to make cycling more convenient and enjoyable. Our revolutionary design concept now has UK Government funding to bring it to market. Sign-up to give your feedback on design evaluations or even attend prototype testing sessions.

Join the Better Bicycles User Evaluation Team

Ride and handling of the Carrera Transit

The Carrera Transit has a very upright, laid back, riding position. The frame is quite short and the handlebar height is not adjustable. The Carrera Transit is much more suited to comfort for short rides than for performance or comfort over long distances. The alloy frame does feel reasonably lively but the steel fork has too much flex. I found that the fork would judder disconcertingly when I applied the front brake. This clearly isn’t a bike for the serious cyclist but for casual use to get around over relatively short distances it is more than adequate.

I’m about 181 cm (6’) and was able to get a good leg extension without overextending the seat post. With the very long seat post, the Carrera Transit would fit much smaller riders although the position would be every more upright for smaller riders.

Specifications

The Carrera Transit is fitted with a Shimano Nexus 3-speed hub gear. This is a reasonable choice for a bike of this type. The Transit isn’t a bike that’s intended for long mountainous rides, it’s for short trips across town. The range of gears is therefore sufficient. An advantage with hub gears is that they need much less maintenance than derailleurs, the flip side of this is that when they do start to go wrong it’s often much harder to fix them. Nexus gears are reliable and have become very popular for city bikes. Hub gears place the gearing within the wheel and only require a single sprocket on the outside of the wheel. This can result in a narrower dropout spacing, which can make for a more compact fold. The Nexus, however, has a large shifting mechanism on the outside. This is fragile and must be protected by an even larger guard around it. Therefore, the potential width advantage of using a hub gear is completely lost.

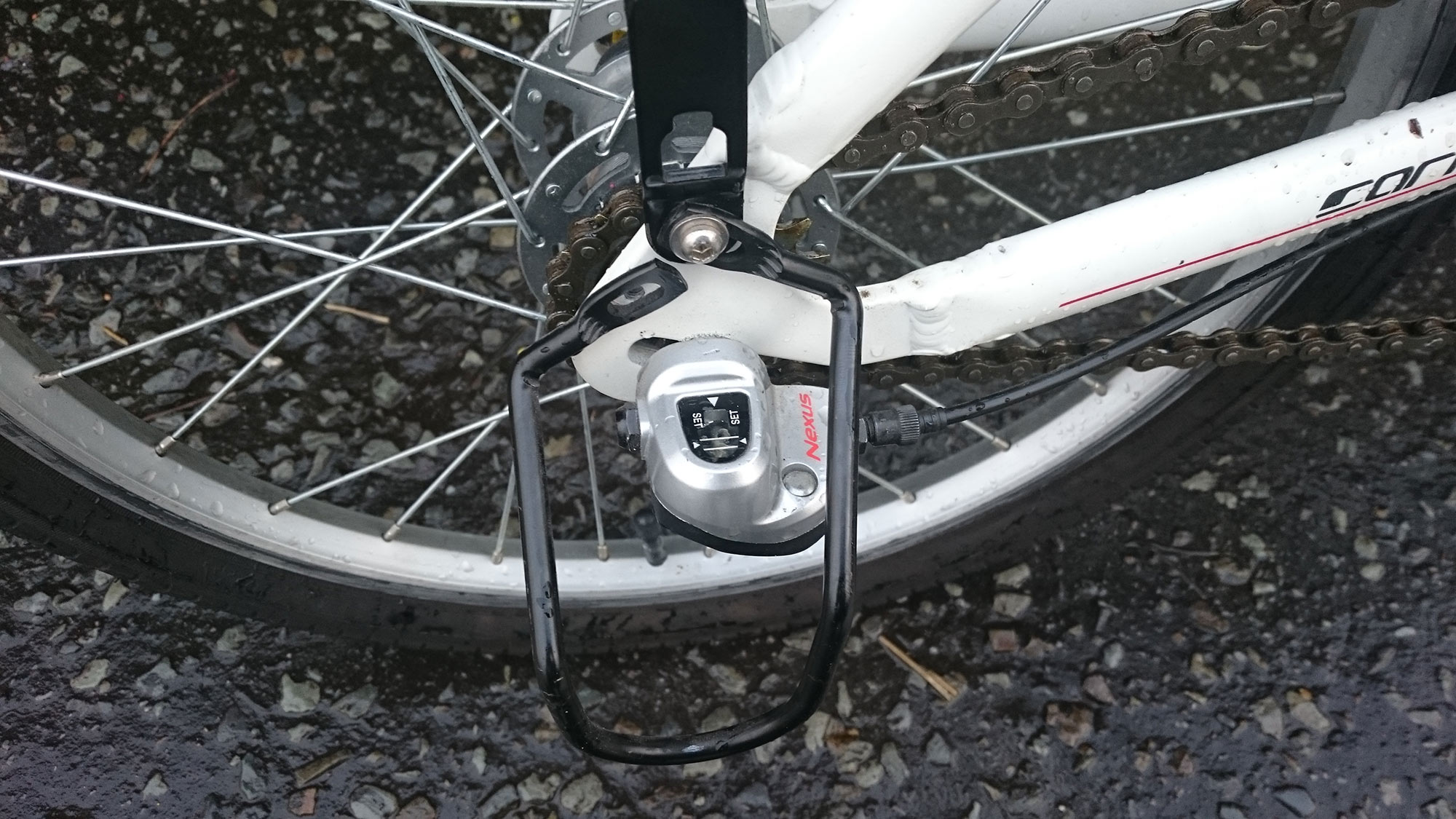

Close up of Nexus gears fitted to Carrera Transit folding bike
The Shimano Nexus hub gear on a Carrera Transit is simple and reliable. However, the external shifting mechanism with guard adds a lot of width to the folded bike.

The choice of a 20” wheel size for this bike is sensible. Firstly there are lots of tire choices available. Smaller wheels can also sometimes cause issues with obstacles and make a bike harder to balance at low speed. This size provides a balance between achieving a reasonable folded package while maintaining stability.

Alloy V-brakes are a popular choice for bikes of this type. They provide enough power to reliably stop in wet weather while being simple and affordable. You don’t get a huge amount of modulation but they are quite adequate and safe. The pads are also easy to get hold of while fitting them is very simple.

Adding to the everyday practicality of the Carrera Transit, it comes fitted with a chain wheel guard and front mudguard. These are important if you want to keep your clothes clean! I would have preferred to see a full chain guard and full mudguards, but at least there is some protection is provided. The front mudguard was reasonably effective but I found that when riding through a deep puddle my feet got soaked as it did not extend low enough.

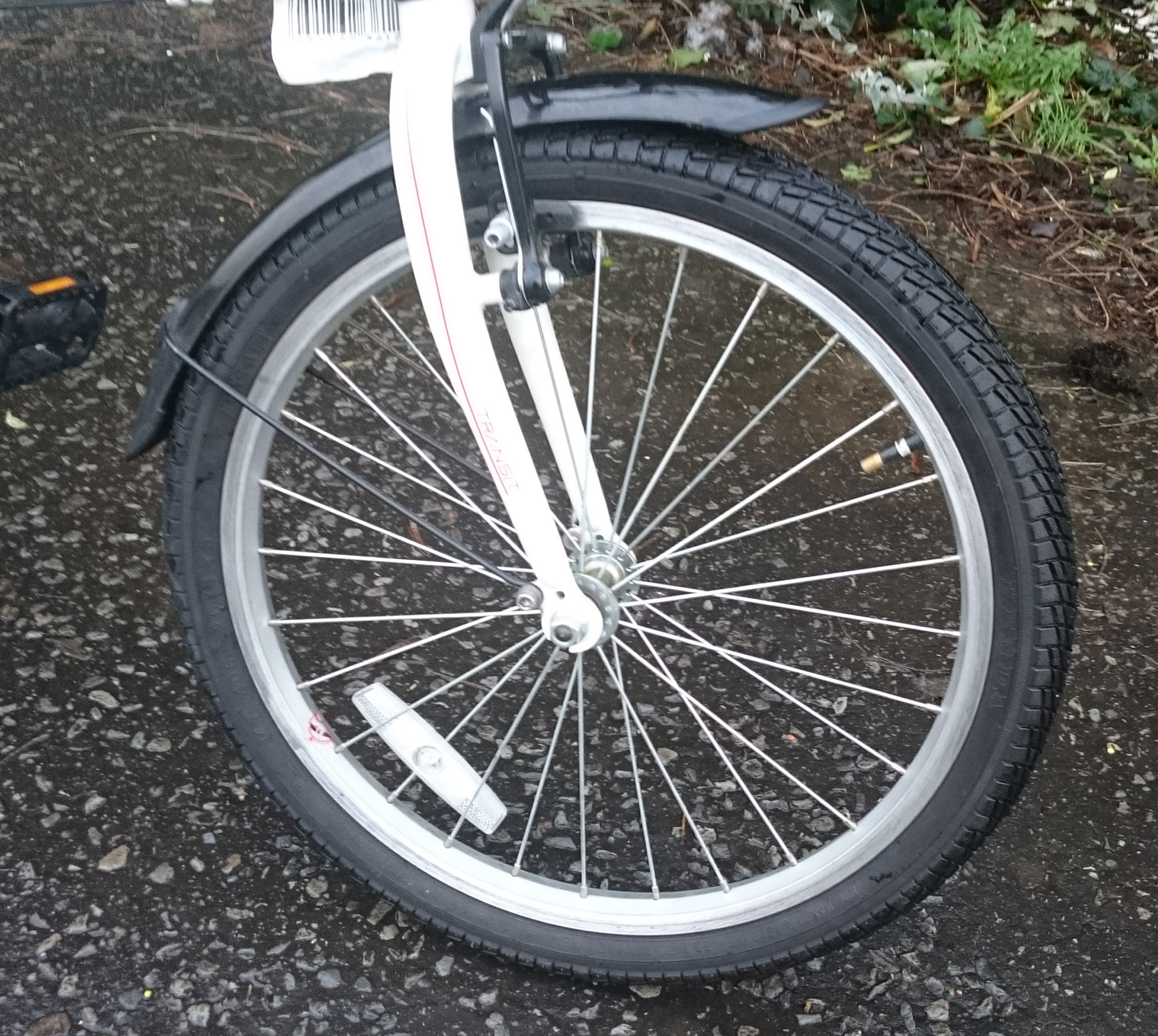

Front wheel of Carrera Transit showing mudguard
The front mudguard works reasonably well but could benefit from extending a bit further around the rear of the wheel

It is disappointing not to see quick release wheels. This means that in order to fix punctures it will be necessary to carry a spanner. It also adds to the inconvenience of what is always an irritating occurrence. V-brakes are also not always the easiest brakes to release when removing a wheel.

Luggage and Child Carrying on the Carrera Transit

The Carrera Transit comes fitted with a simple but effective rear luggage rack. As with virtually every other bike, there is no child seat but it should be possible to attach one to the luggage rack.

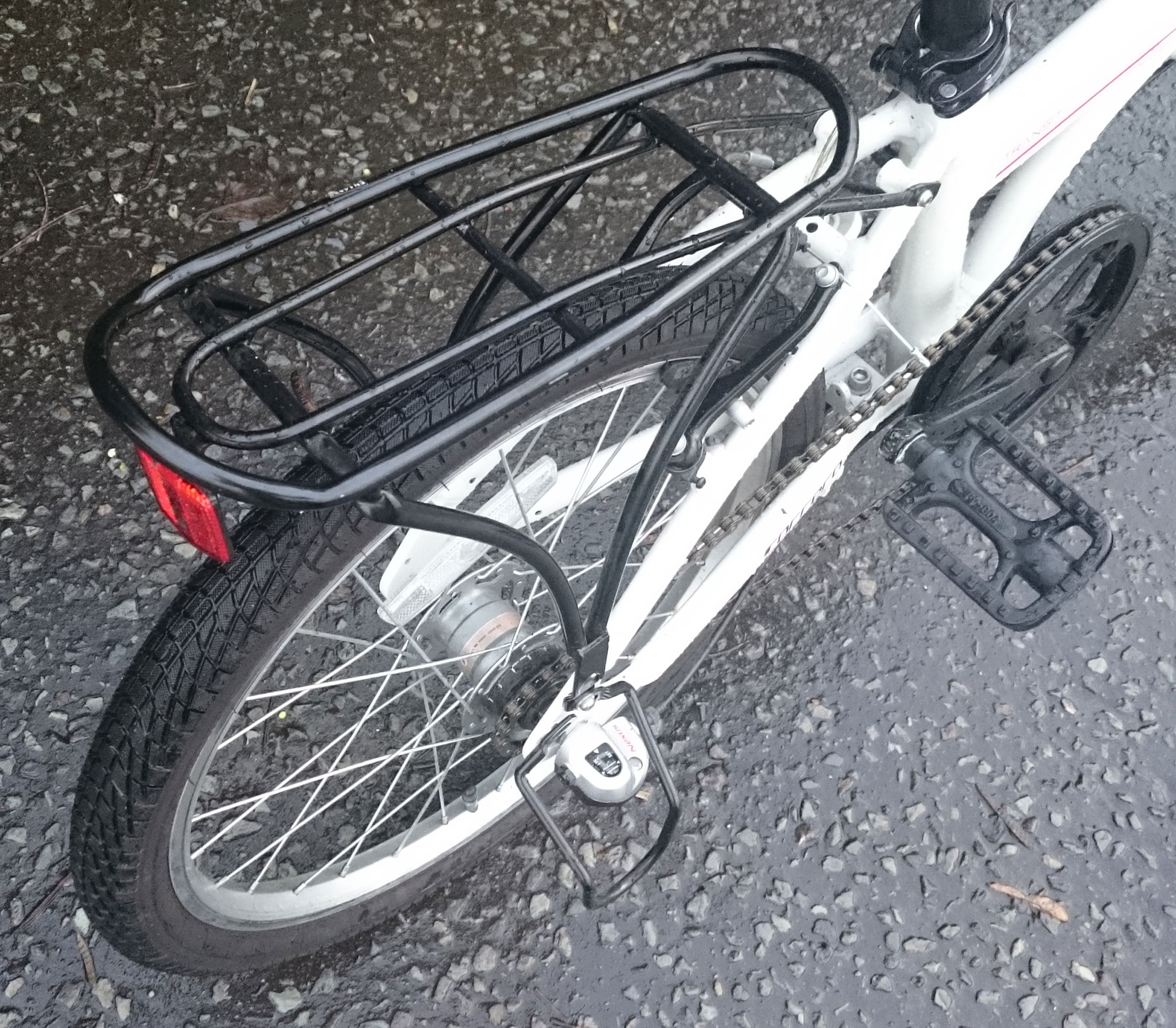

Close-up of Luggage rack fitted to the Carrera Transit
Luggage rack supplied with the Carrera Transit

Conclusion

The Carrera Transit is a budget folding bike and yet it has everything needed for a practical folding bike. The reliability of the 3-speed hub gears and V-brakes is combined with the practicality of mudguards and a luggage rack. The comfortable upright position will suit less sporty cyclists. The bike is easy enough to fold and this will be a useful feature for those wanting to store the bike in a cupboard or carry it on the train. It isn’t a super small and light package so this wouldn’t be a great choice for traveling on the underground train or taking into buildings such as shops and offices.

Filed Under: City Folding Bikes

Raleigh Evo 2 folding bike review

28th January 2018 by Jody Muelaner 21 Comments

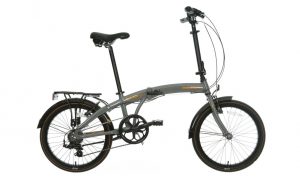

This is a detailed review of the Raleigh Evo 2 folding bike. This very affordable folder is more than adequate as a city bike for getting around. It has 7 gears and V-brakes along with a lively alloy frame. It folds down enabling it to be stored in a somewhat smaller space than a non-folding bike but don’t expect a Brompton sized package that you can carry around with you. The adjustable handlebars mean you should be able to achieve a riding position that suits you reasonably well. Although the ride is remarkably good for a bike of this price I did find the flex in the forks and long stem made the bike feel somewhat unstable when braking. All in all, it’s a good bike for the money, currently just £200 from Halfords.co.uk, but don’t expect performance comparable with much more expensive folding bikes.

The good:

  • Very affordable folding bike
  • Adjustable
  • Fully equipped with luggage rack and mudguards
  • Adequate gears and brakes
  • Lively feeling frame
  • 20” wheels

The bad:

  • Heavy: 16kg (35 lbs)
  • Bulky when folded: 90cm x 45cm x 65cm (35” x 18” x 26”)
  • Flex in fork and stem

Folding and unfolding the Raleigh Evo 2

Folding Evo2 is easy enough although I did find the safety release on the latches a little awkward. It’s a typical half way fold. The folded package is still quite large at 90cm x 45cm x 65cm (35” x 18” x 26”). This is about three times the volume of a Brompton, the standard for a compact fold. It is twice the volume of a Strida, which gives a compact stick-like fold. At 16kg (35 lbs), the weight, combined with the large awkward shape, means this is not a bike you would want to carry around for long.

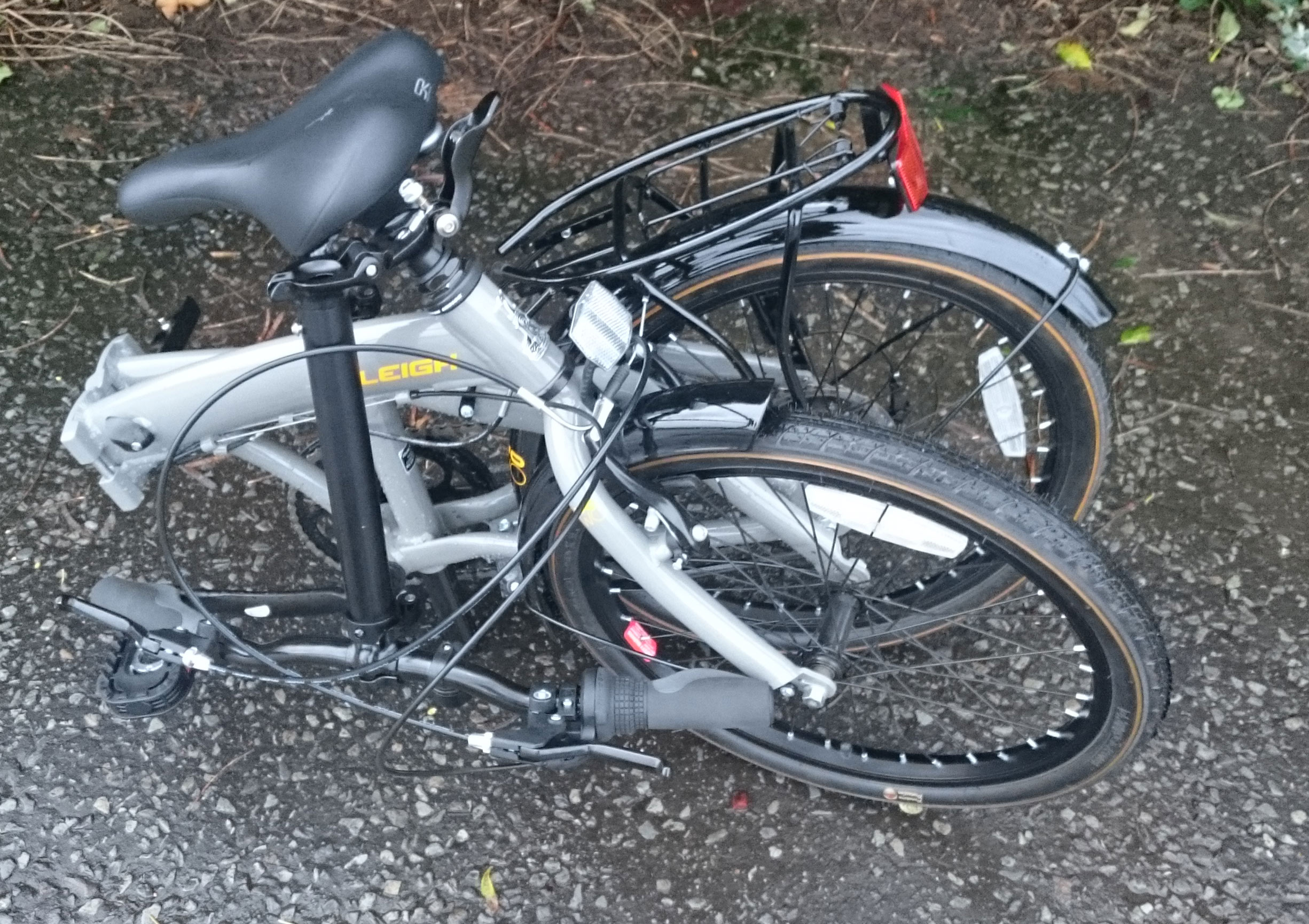

Raleigh Evo 2 bike folded, side view
The Raleigh Evo 2 is easy to fold although it doesn’t fold very small

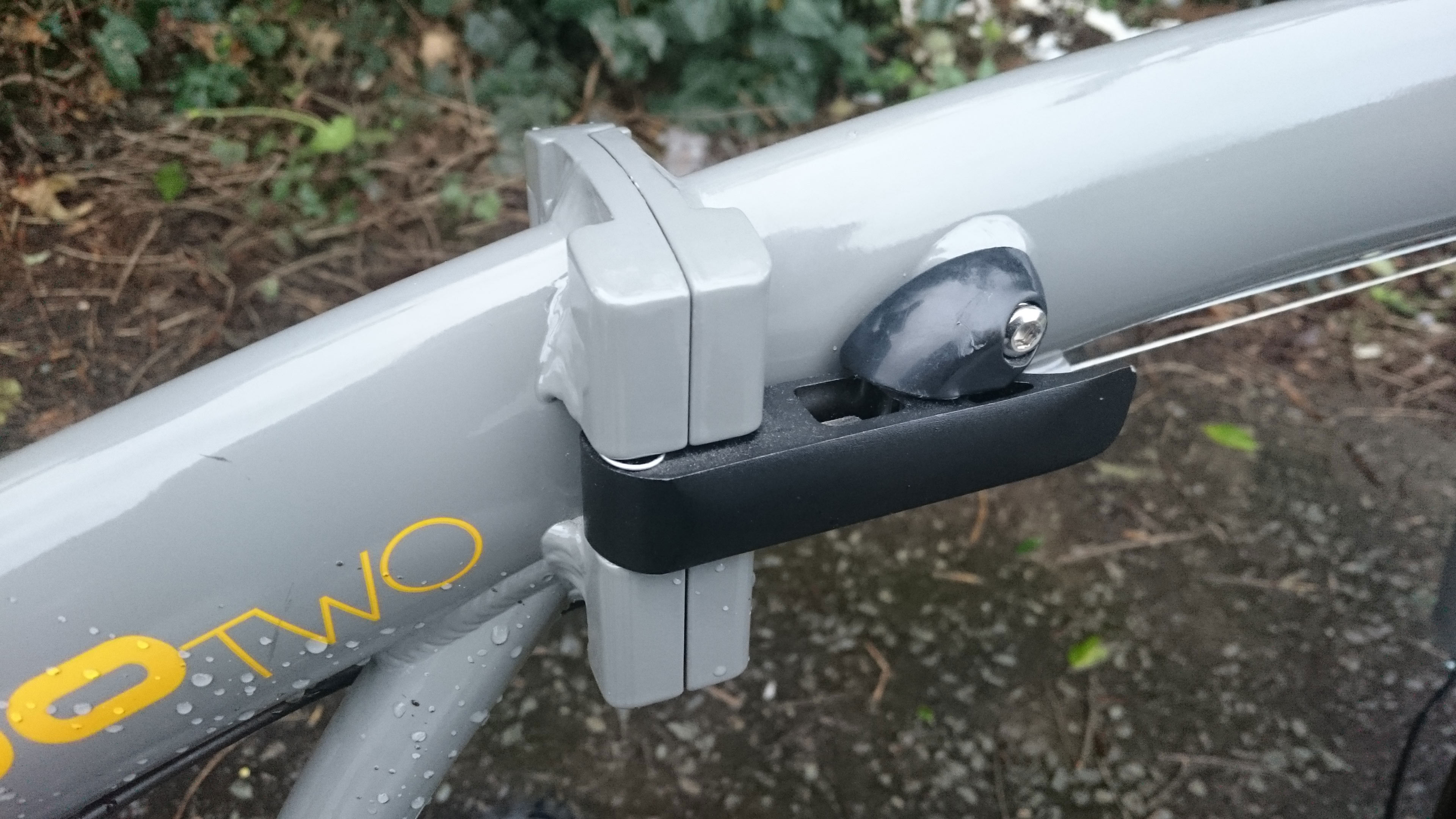

Main clamp lever on Raleigh Evo 2
A safety latch must be lifted before the main clamp can be opened, I found this quite fiddly

It’s possible to quickly fold it in half and then wheel it along on the wheels but it’s still a large package that is not at all maneuverable. I certainly wouldn’t want to wheel it along in a crowded space. This issue is made a little worse by the way that the folded package didn’t seem to have any catch to keep it folded. This means that it can start to open out as you’re moving it.

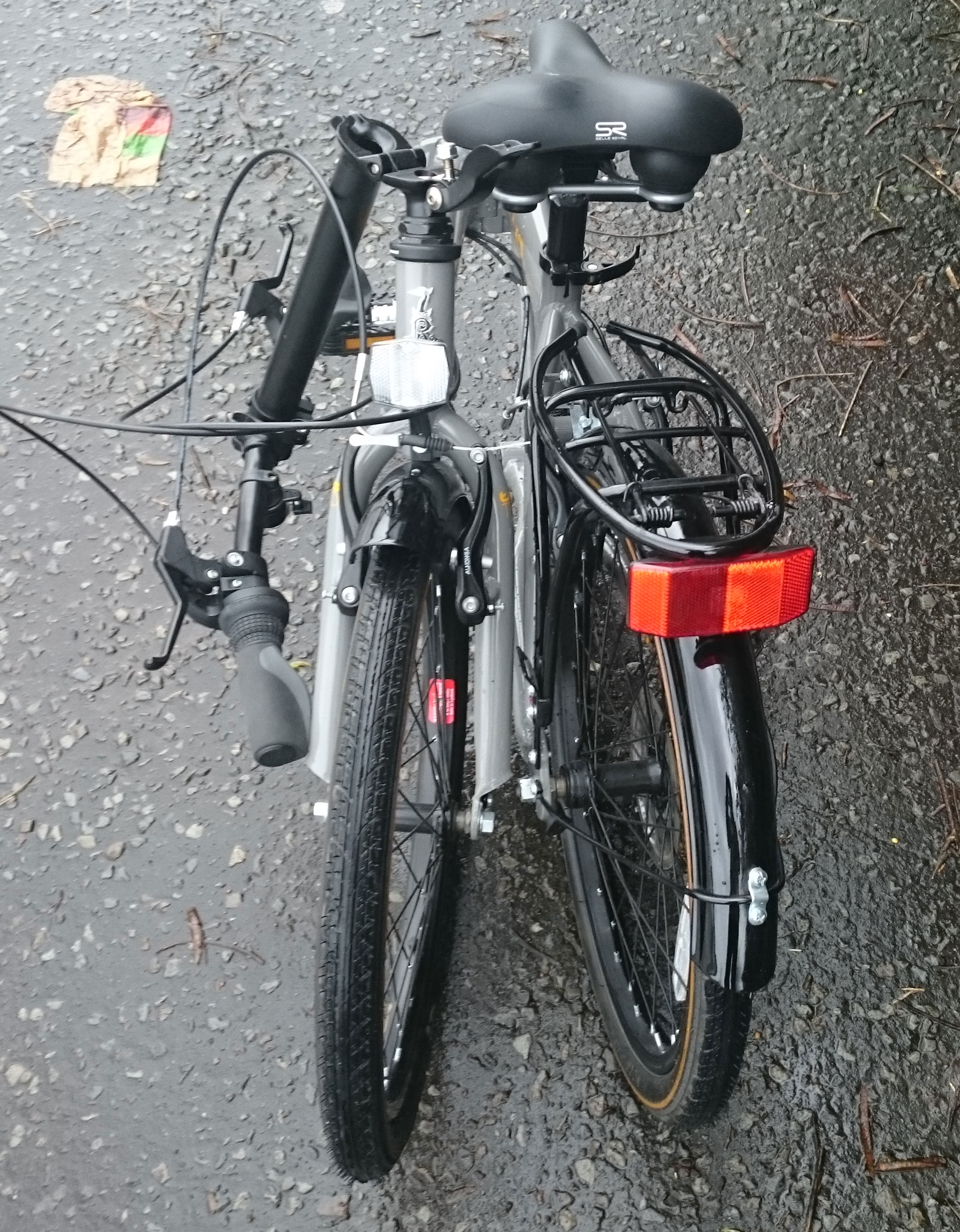

Raleigh Evo 2 folding bike folded rear view
The folded package is small enough to carry on a train or store in a cupboard

My feeling is that this is a bike that can be folded if you need to store it in a small space. You might travel by train, live in a small flat, or want to carry the bike in a motor home or boat. If you don’t really need to move it around while it is folded, then you will be fine. Often it is quite acceptable to walk with a bike unfolded, for example in a train station. The Evo 2 would be less suitable if you need to be able to walk around with the bike folded, for example in a rapid transit system or in shops.

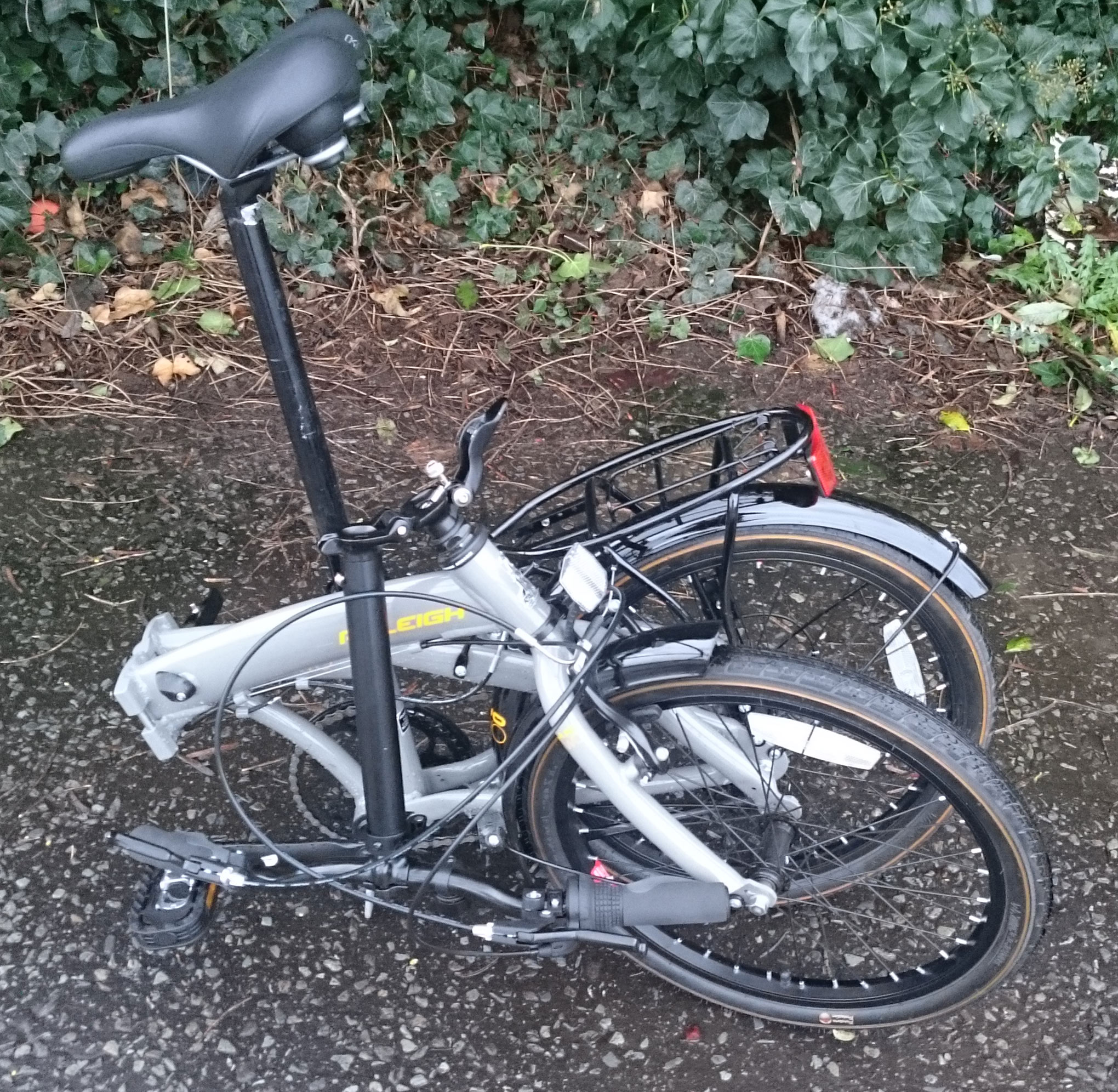

Raleigh Evo 2 partly folded
The saddle can be used as a handle to wheel the Raleigh Evo 2 along, but it can start to unfold as there is no catch to hold it together

Unfolding is easy enough although as with most folding bikes you need to put the saddle back up to the correct height. This often means making slight adjustments after you’ve started riding.

A Better Bicycle is Coming…

The Better Bicycles team of researchers and engineers aim to make cycling more convenient and enjoyable. Our revolutionary design concept now has UK Government funding to bring it to market. Sign-up to give your feedback on design evaluations or even attend prototype testing sessions.

Join the Better Bicycles User Evaluation Team

Raleigh Evo 2 ride and handling

I found this bike quite enjoyable to ride and was able to get it up to a decent speed easily enough. As you would expect with a bike in this price range it comes with fairly cheap tires so a big improvement could be easily made by upgrading these. The main issue I had was a feeling of too much weight over the front wheel. This combined with flex in the forks and the very long stem made the bike feel quite unstable when braking. When applying the front brake hard the fork would shudder.

The Evo 2 has a telescopic stem that allows the handlebar height to be adjusted. This is a very nice feature. It is possible to achieve an upright relaxed position or a lower more sporty position. The frame is, however, quite short meaning that it is not possible to achieve a very sporty position. I’m about 181 cm (6’) and I needed the seat post beyond its maximum mark to get proper leg extension. This bike, therefore, wouldn’t be suitable for taller riders.

The large cushioned saddle is well suited to an upright position. It was very comfortable when used sitting up.

Specifications

The choice of 7 speed Shimano derailleur gears and alloy V-brakes is good for a bike of this type. The gear range is enough to get up hills and cruise at a decent speed. The brakes are powerful enough to stop in the wet although they lack a modulation of other options. Everything is easy to maintain and uses standard parts that are easy to get hold of. 20” wheels are a very common size so there’s a wide range of tires available. They are also a nice compromise between being small enough for a compact fold while large enough to give low rolling resistance and cope with obstacles such as potholes.

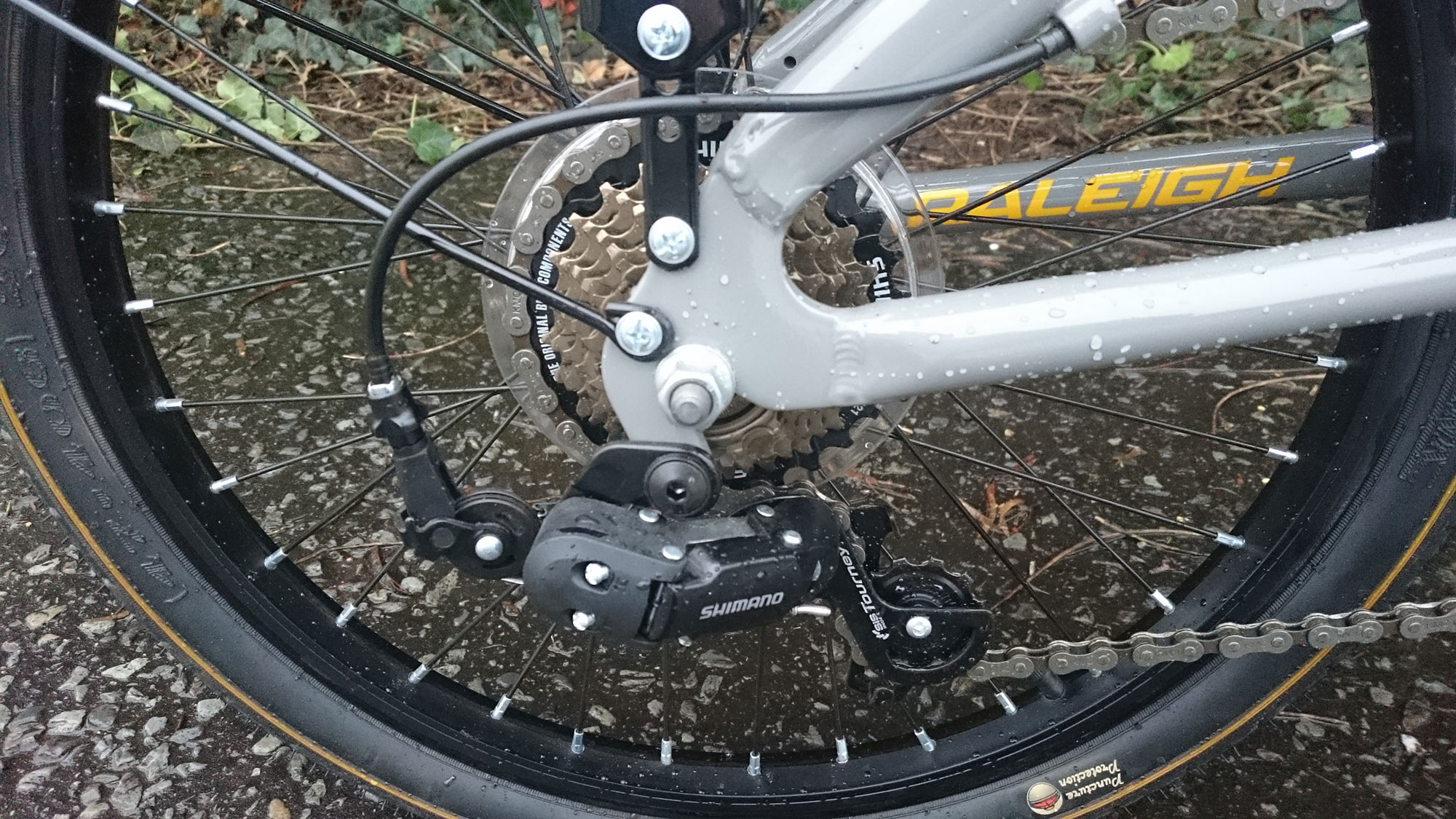

Raleigh Evo 2 gears
Seven Speed Shimano Tourney Derailleur gears

A basic chainring guard is fitted but it would have been nice to see a full chain guard. The full mudguards on both wheels are very effective and a nice feature.

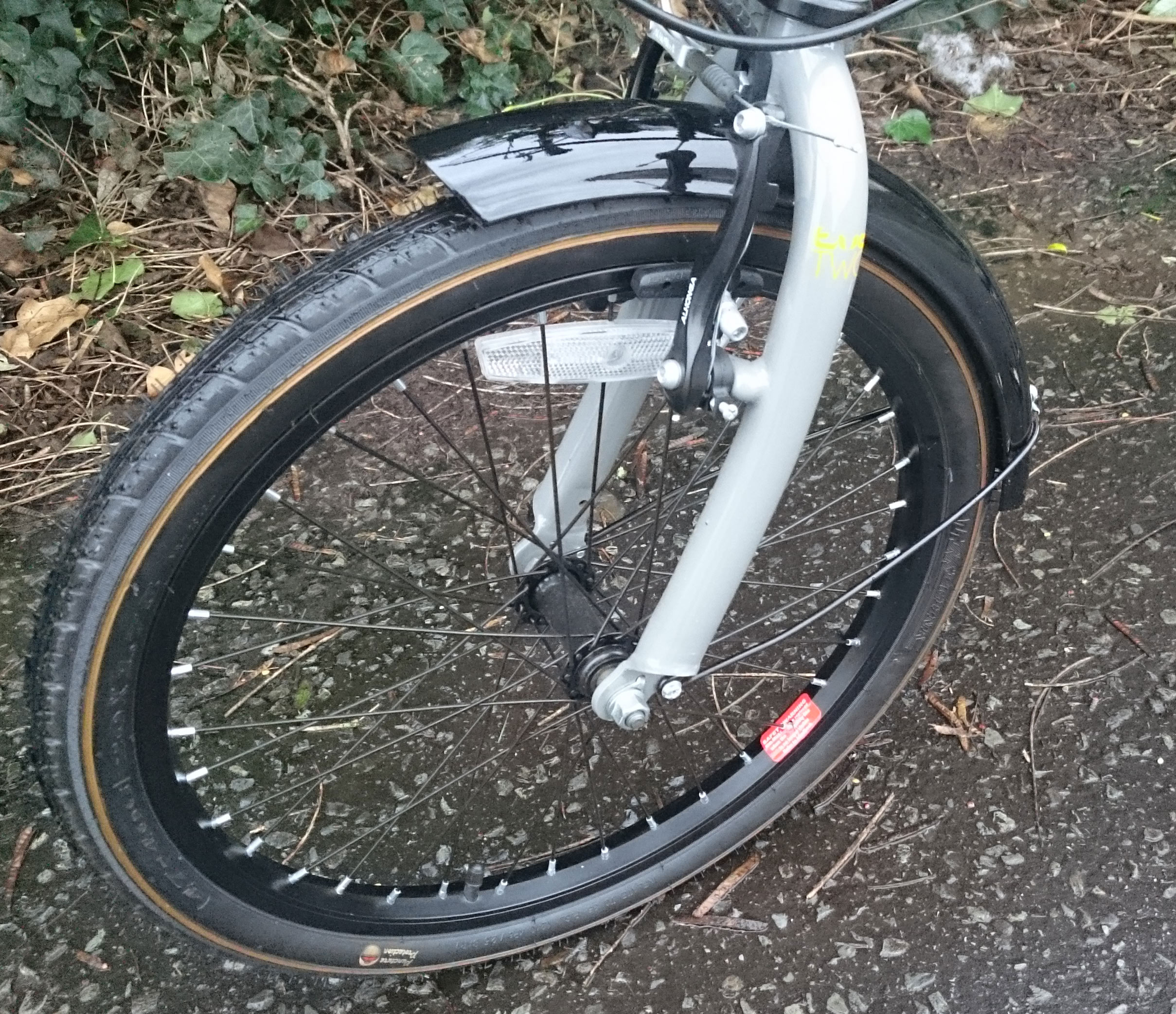

Front wheel showing mud gaurd and V-brakes
The full mudguards are quite effective and the V-brakes provide adequate stopping power

It’s a shame that quick-release wheels aren’t included, but you can’t expect everything on a bike of this price. It simply means that a spanner will have to be carried as part of a puncture repair kit.

Raleigh Evo 2 Luggage and Child Carrying

It is good to see that a luggage rack is included. This is a decent size and felt sturdy. As you would expect there is no child seat but it should be easy enough to attach one to the luggage rack.

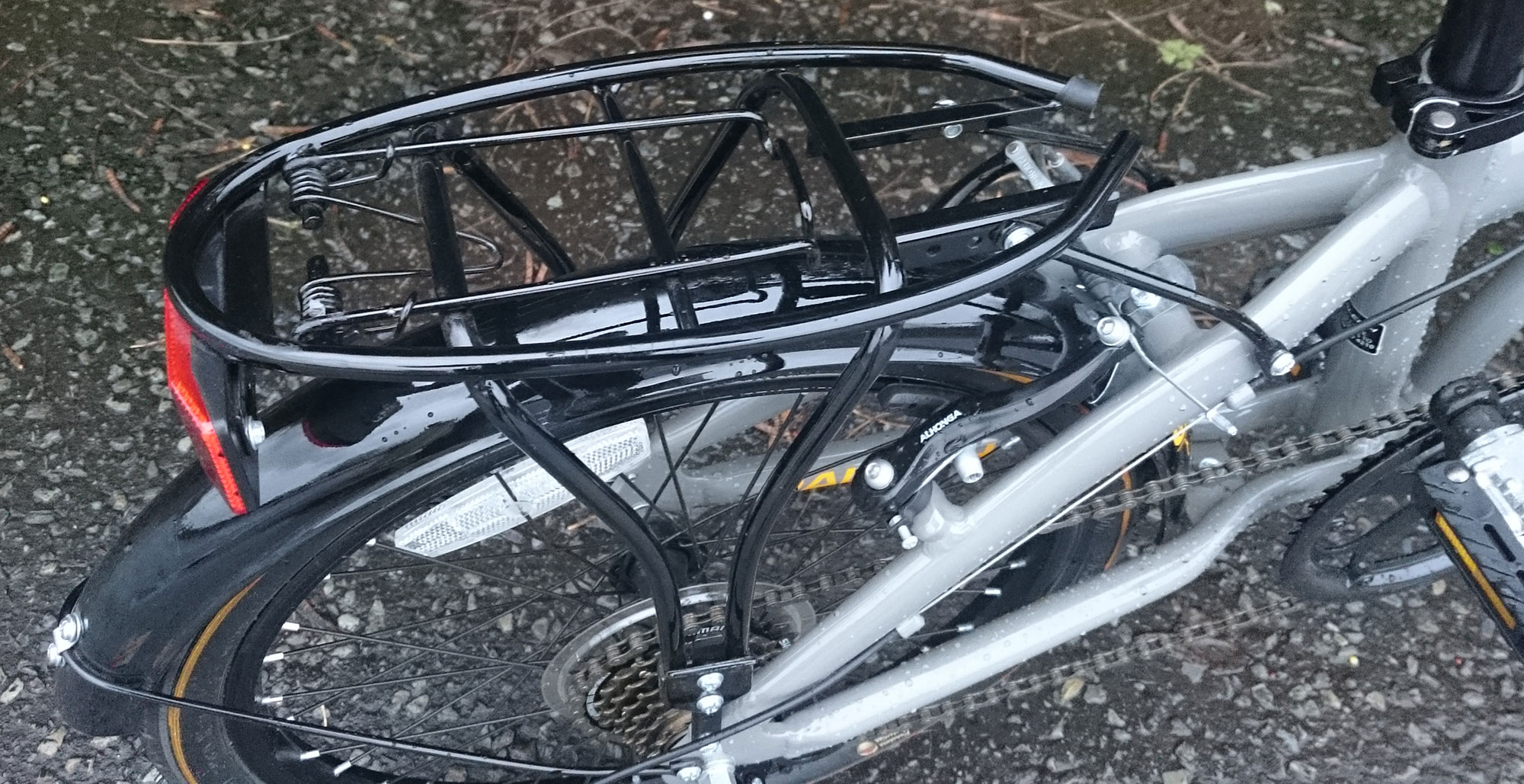

Raleigh Evo 2 luggage rack
The rear luggage rack included with the Raleigh Evo 2

Conclusion

The Raleigh Evo 2 is a very affordable folding bike. It has everything you need to get around over short to medium length trips. The 7 speed Shimano derailleur gears give enough range to climb hills and cover ground reasonably quickly. The alloy V-brakes give safe and reliable stopping power in wet weather. This is a bike which can be folded for transport on a train or in a restricted space but it isn’t small or light enough or carrying around folded. The ride is very good for a bike in this price range but there is quite a lot of flex in the forks and the long stem. If you need a basic folding bike on a budget then this is a great choice.

Filed Under: City Folding Bikes

  • Page 1
  • Page 2
  • Go to Next Page »

Primary Sidebar

Coming soon – the fastest folder?

Folding bike animation

Follow Us

  • Facebook
  • X
  • LinkedIn
  • Instagram
  • YouTube
Privacy & Cookies: This site uses cookies. By continuing to use this website, you agree to their use.
To find out more, including how to control cookies, see here: Cookie Policy

Patented: GB2605862

European patent pending

  • Facebook
  • LinkedIn
  • EDI Policy
  • Privacy Policy
